Repair Procedures: Installation

Information

• In order to install rear glass, use tools as follows as displayed in the picture.

  [Tools Block Diagram]

  Fig 1: Sealant Nozzle, Glass Adhesive Sealant And Sealant Gun

  Courtesy of HYUNDAI MOTOR AMERICA

  (1) Sealant nozzle.

  (2) Adhesive sealant only for glass.

  (3) Sealant gun.

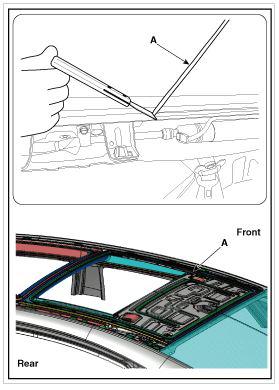

1. Cut remaining sealant (A) around body panel using knife blade.

   Information

   • When cutting sealant around body panel, leave 2 mm thick from adhesive spot.
   NOTE:

   • Give attention not to damage painted area in the body.
   • If found damaged area, apply protective paint or rust inhibitor.
   Fig 2: Cutting Sealant Using Knife

   Courtesy of HYUNDAI MOTOR AMERICA
2. Clean edges of body panel and rear glass thoroughly with alcohol or air gun.

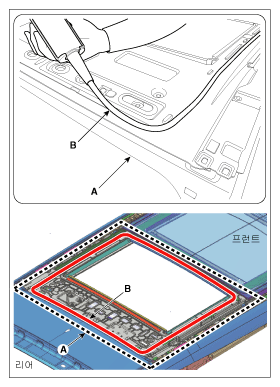

3. Apply sealant (B) around body panel using sealant gun.
   NOTE:

   • When applying sealant using sealant gun avoid to cut off and water leak.
   Fig 3: Cutting Body Panel Sealant Using Knife Blade

   Courtesy of HYUNDAI MOTOR AMERICA
4. Install rear glass (A) on the body panel.
   Fig 4: Applying Sealant On Body Panel Using Sealant Gun

   Courtesy of HYUNDAI MOTOR AMERICA
5. Install the rear glass (A) completely after checking step and gap.
6. Tape around rear glass not to make floating area.
   NOTE:

   • Clean thoroughly with alcohol or cleaner when sealant is over applied and seen from outside of the body.
   Fig 5: Checking Rear Glass Step And Gap

   Courtesy of HYUNDAI MOTOR AMERICA

   Information

   • After rear glass is installed vehicle should be parked on flat place 4 hours at least.
   • If vehicle should be run, drive slowly within 8 hours at least.
   • Have driver give attention to avoid violent drive or drive uniform road for 2 ~ 3 days.
7. Install roof molding (A).
   Fig 6: Installing Roof Molding

   Courtesy of HYUNDAI MOTOR AMERICA
8. Install movable glass.

   (Refer to: Panorama Sunroof - "MOVABLE GLASS ").
