Glass Step Alignment

  1. Perform considerable step alignment after replacing movable glass.
    Fig 1: Identifying Movable Glass
    G00561568Courtesy of HYUNDAI MOTOR AMERICA

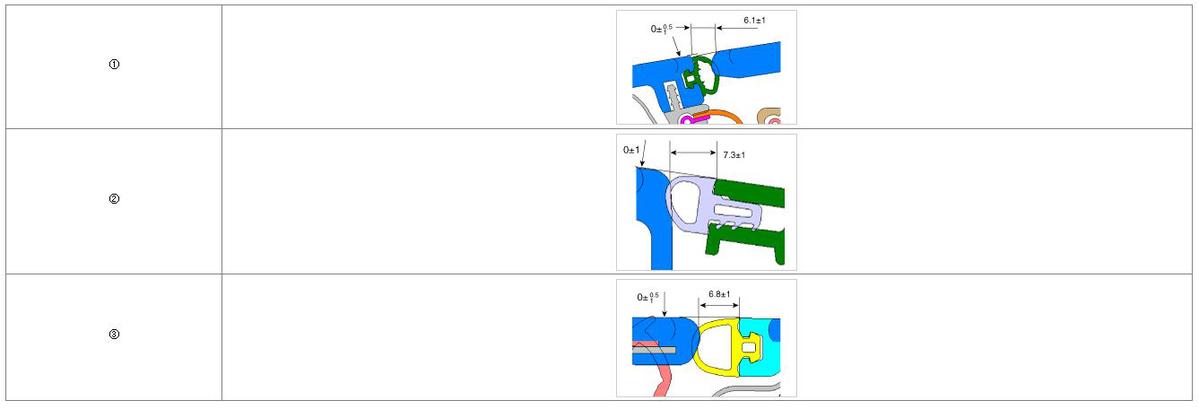

    Fig 2: Movable Glass Position Chart
    G00561569Courtesy of HYUNDAI MOTOR AMERICA
  2. Perform height adjustment releasing height adjust screw (A) a bit.
    CAUTION:
    • Be careful not to damage screws.
    Fig 3: Identifying Height Adjust Screw
    G10589676Courtesy of HYUNDAI MOTOR AMERICA
