Repair Procedures: Installation

Information

• In order to install panorama sunroof assembly use tools as follows.

  [Tools Block Diagram]

  Fig 1: Sealant Nozzle, Adhesive Sealant For Glass And Sealant Gun

  Courtesy of HYUNDAI MOTOR AMERICA
  1. Sealant nozzle
  2. Adhesive sealant only for glass
  3. Sealant gun

1. Use alcohol or an air gun to clean up the edges of the body panel and the panorama sunroof.
2. Use a sealant gun to apply sealant (B) around body panel (A).
   NOTE:

   • When using a sealant gun to apply the sealant, make sure that the sealant is not cracked to prevent water leaks.

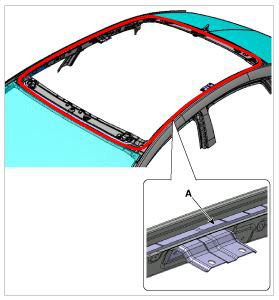

   Fig 2: Applying Sealant Around Body Panel

   Courtesy of HYUNDAI MOTOR AMERICA

   Suction		Step	Gap
   Front	A - A	1.4 + 0.5 ~ -1	5.7 ± 1
   Side	B - B	1.7 + 1 ~ -0.5	5.3 ± 1

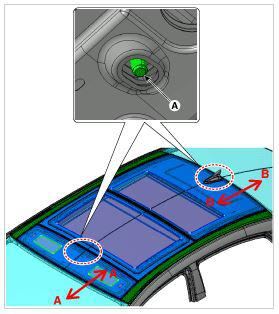

3. Carefully install panorama sunroof on body flange set by centering device hole (A).
   Fig 3: Installing Panorama Sunroof Flange By Centering Device Hole

   Courtesy of HYUNDAI MOTOR AMERICA
4. Check steps and gaps for every side.

   Suction		Step	Gap
   Front	A - A	2.3 -1 ~ 0	7.5 ± 1
   Rear	B - B	2.2 -1 ~ 0	6.8 / 1.5
   Side	C - C	3.6 ± 0.5	2

5. Tighten panorama sunroof fixing nuts.

Tightening Torque:  2.0 ~ 3.0 kgf.m

Fig 4: Panorama Sunroof Fixing Nuts Locations
Courtesy of HYUNDAI MOTOR AMERICA
6. Install the rear window glass.
7. Perform water leak test.

   Information

   • Avoid water flow to touch adhesive surface directly and let water flow to side of the glass.
8. If water leak occurs, apply sealant on leakage spot.

   Information

   • After panorama sunroof is installed vehicle should be parked on flat place 4 hours at least.
   • If vehicle should be run, drive slowly within 8 hours at least.
   • Have driver give attention to avoid violent drive or drive uniform road for 2 ~ 3 days.
9. Install the front glass.
10. Install the roof trim.
11. Install the roof side molding.
