Repair Procedures: Replacement
- Open movable glass completely pressing panorama sunroof switch.

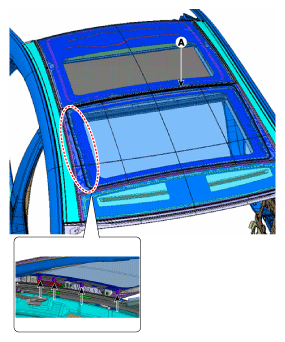

- Remove slide folding cover (A).
Courtesy of HYUNDAI MOTOR AMERICA
- Close movable glass completely pressing panorama sunroof switch.
- Loosen screws mounted on the glass using star wrench (T25) then remove movable glass (A).
CAUTION:
- Be careful not to damage screws.
Courtesy of HYUNDAI MOTOR AMERICA
- To install, reverse the removal procedure.
CAUTION:
- Carry out considerable step adjustment after exchanging movable glass.
- When movable glass is installed tilt lever should be inserted first and be careful that tilt lever shoe should not be damaged by rear rail interference.
Courtesy of HYUNDAI MOTOR AMERICA
