Repair Procedures: Removal

Information
In order to remove the front glass, use the tools displayed in the following graphic:
[Tooling Diagram]

Fig 1: Identifying Square Wire And Insert-Type Wire Grip Tools
Courtesy of HYUNDAI MOTOR AMERICA
1. Square wire
2. Insert-Type wire grip
Insert and affix square wire into the insert hole of the wire grip.
[Tooling Assembly Diagram]

Fig 2: Inserting And Affixing Square Wire
Courtesy of HYUNDAI MOTOR AMERICA

Press panorama sunroof switch to fully open the movable glass.
Remove the roof side molding.
(Refer to: Body Side Molding - "ROOF SIDE MOLDING ").
Pull the square wire (A) to the left and right, then apply a force in the direction of the arrow to cut Off the residual sealant.
Information
- Longer wires require more power, so divide areas (1) and (2) in half to cut Off residual sealant.
CAUTION:
- Make sure that you put on gloves to protect your hands from potential injury.
- Be careful about potentially burning your hands due to the heat generated from the wire in use.
- Be careful when working with wiring because it may be cut.
NOTE:
- Be careful not to damage the body.

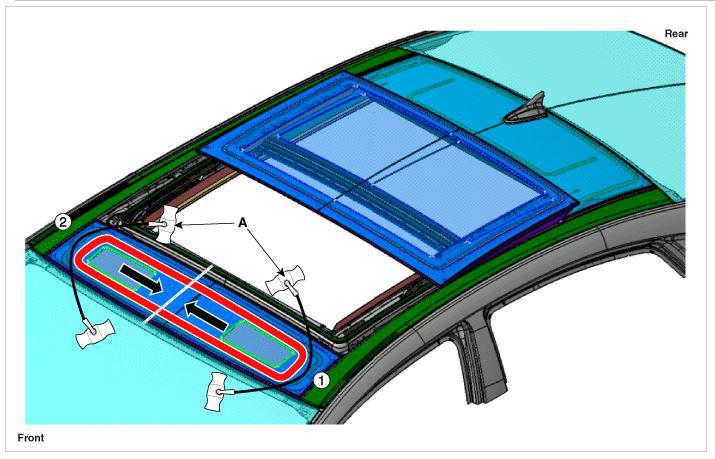

Fig 3: Pulling Square Wire To Cut off Residual Sealant
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front glass (A) carefully without damaging it.

Fig 4: Removing Front Glass
