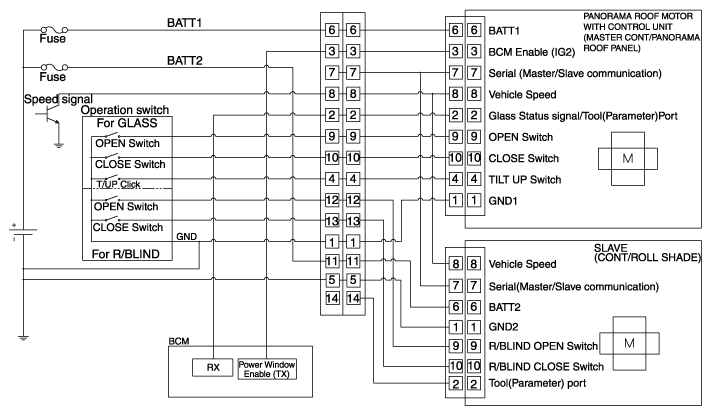

Circuit Diagram
| No | Sunroof Wiring Connector (Vehicle Side) | Sunroof Wiring Connector (Motor) | Panorama Glass Motor (Master) | Blind Motor (Slave) |
|---|---|---|---|---|
| 1 | GND 1 | GND 1 | GND 2 | |
| 2 | Glass status signal/tool (parameter) | Glass status signal/tool (parameter) | Blind signal | |
| 3 | BCM Enable | BCM Enable | - | |
| 4 | Tilt up switch | Tilt up switch | - | |
| 5 | GND 2 | - | - | |
| 6 | BATT 1 | BATT 1 | BATT 2 | |
| 7 | - | - | - | |
| 8 | Vehicle speed signal | Vehicle speed signal | Vehicle speed signal | |
| 9 | Glass open switch | Glass open switch | Blind open switch | |
| 10 | Glass close switch | Glass close switch | Blind close switch | |
| 11 | BATT 2 | |||
| 12 | Blind open switch | |||
| 13 | Blind close switch | |||
| 14 | Blind signal | |||
