Repair Procedures: Replacement

CAUTION:

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape and apply protective tape around the related parts to prevent damage.
Be careful not to scratch the door trim and other parts.

Using a screwdriver or remover, remove the rear door derya inner cover (A).

Fig 1: Identifying Rear Door Derya Inner Cover
Courtesy of HYUNDAI MOTOR AMERICA
Using a flat-tip or remover, remove the rear door pull cap (A).

Fig 2: Identifying Rear Door Pull Cap
Courtesy of HYUNDAI MOTOR AMERICA
Pull the front door inside handle using a flat head screwdriver and remove the cap (A) using the hole located inside of the handle.

Fig 3: Identifying Front Door Inside Handle Cap
Courtesy of HYUNDAI MOTOR AMERICA

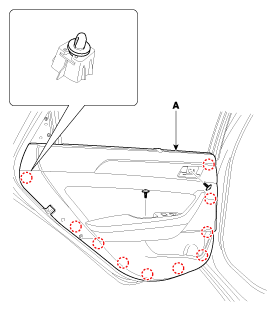

After loosening the mounting screws, then remove the rear door trim (A) by using a flat-tip screwdriver.

Fig 4: Identifying Rear Door Trim With Mounting Screw
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear door inside handle cage (A).
Disconnect the power window switch connector (B).

Fig 5: Identifying Rear Door Inside Handle Cage And Power Window Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear door side curtain assembly.
(Refer to: Rear Door - "Rear Door Side Curtain Assembly").
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips.
