Rear Seat Heater

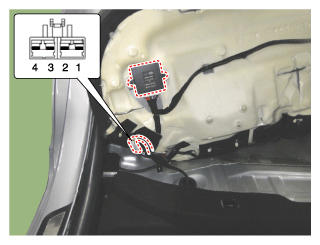

- Check for continuity and measure the resistance between Terminals No 1 and No 4.
Standard Value
Rear seat: 2.82Ω ± 10%
- Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.
Standard Value
High (Cushion): 38 ± 2°C
Low (Cushion): 42 ± 2°C
