Front Seat Heater

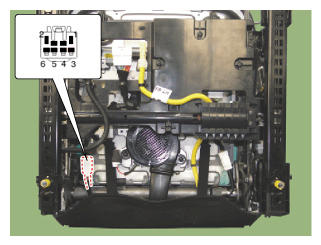

- Check for continuity and measure the resistance between Terminals No 3 and No 6.
Standard Value
Driver/Assists (cushion + back): 1.58 ± 10%
- Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.
Standard Value
1st: cushion: 36 ± 2°C, back: 40 ± 2°C
2st: cushion: 39 ± 2°C, back: 45 ± 2°C
3st: cushion: 42 ± 2°C, back: 50 ± 2°C
