Front Seat Heater (Air Ventilation)

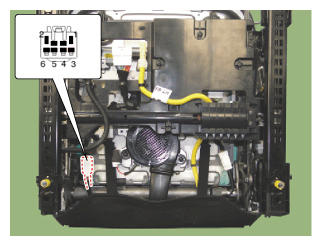

- Check for continuity and measure the resistance between terminals.
Standard Value
Cushion (Teminal: 4-6): 2.94Ω ± 10%
Back (Teminal: 5-6): 2.71Ω ± 10%
- Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.
Standard Value
1st: Cushion: 36 ± 2°C, back: 40 ± 2°C
2nd: Cushion: 39 ± 2°C, back: 45 ± 2°C
3rd: Cushion: 42 ± 2°C, back: 50 ± 2°C
