Circuit Diagram

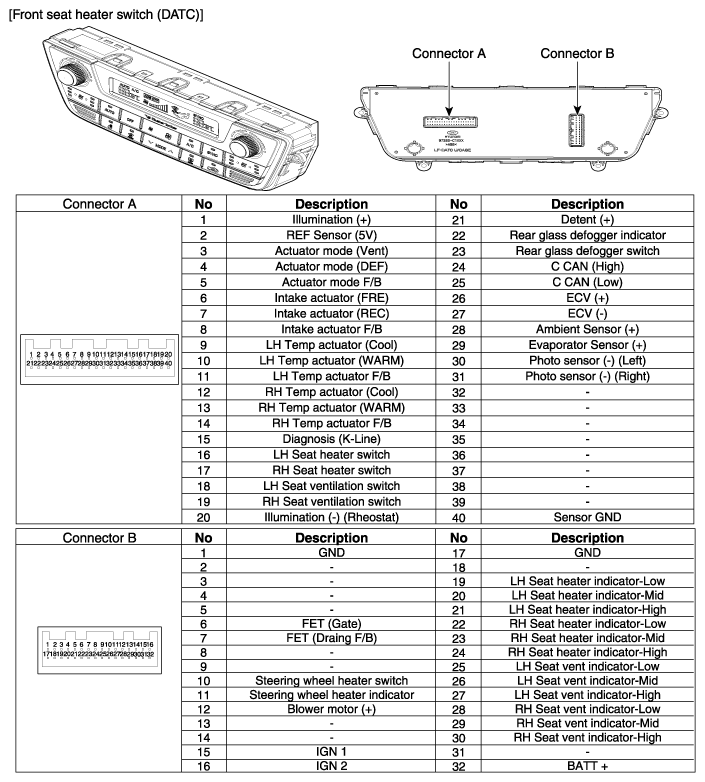

Fig 1: Identifying Seat Heater Switch Terminals (DATC)

Courtesy of HYUNDAI MOTOR AMERICA

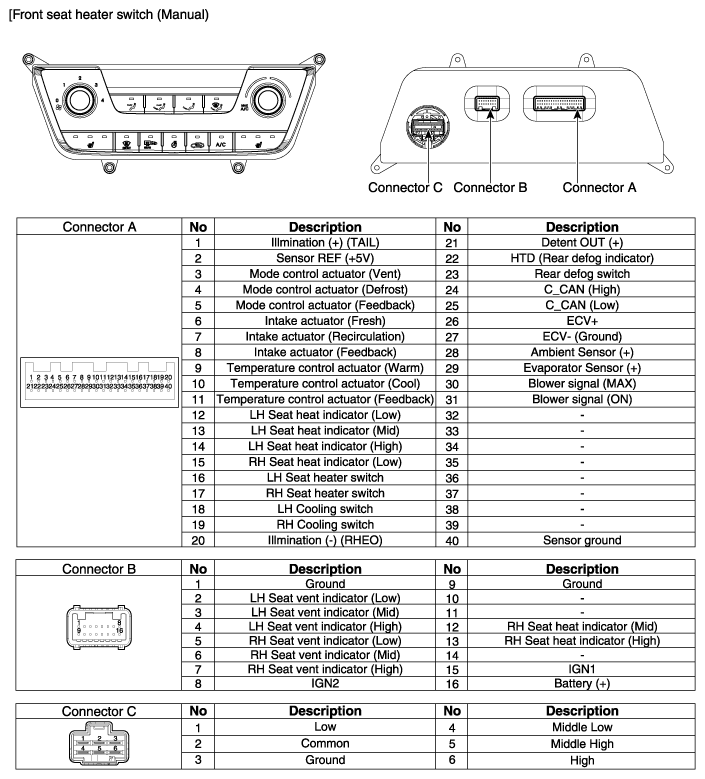

Fig 2: Identifying Seat Heater Switch Terminals (Manual)

Courtesy of HYUNDAI MOTOR AMERICA

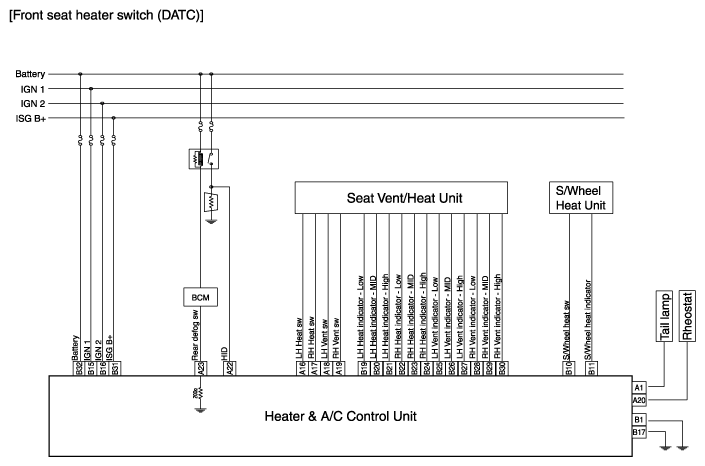

Fig 3: Seat Heater Switch Terminals (DATC) Circuit Diagram

Courtesy of HYUNDAI MOTOR AMERICA

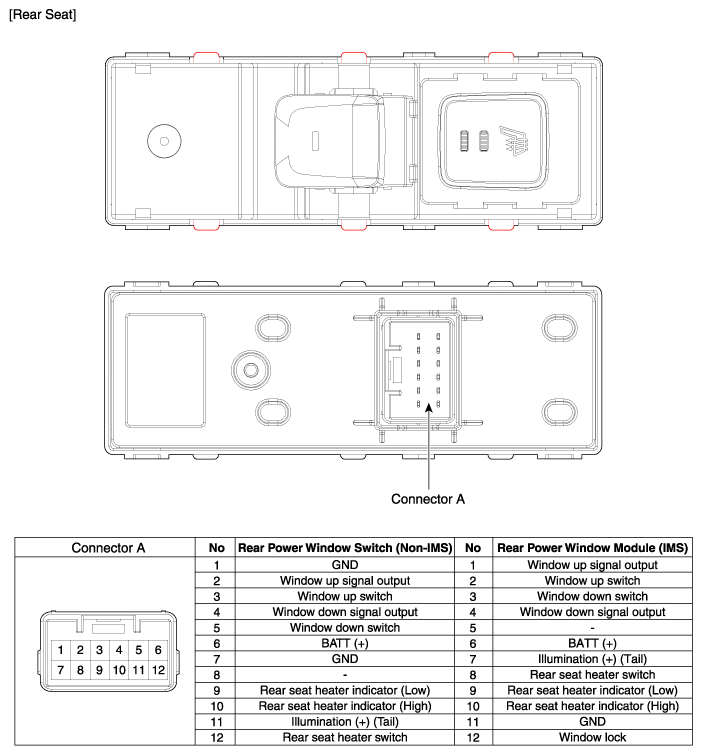

Fig 4: Identifying Rear Seat Terminals

Courtesy of HYUNDAI MOTOR AMERICA

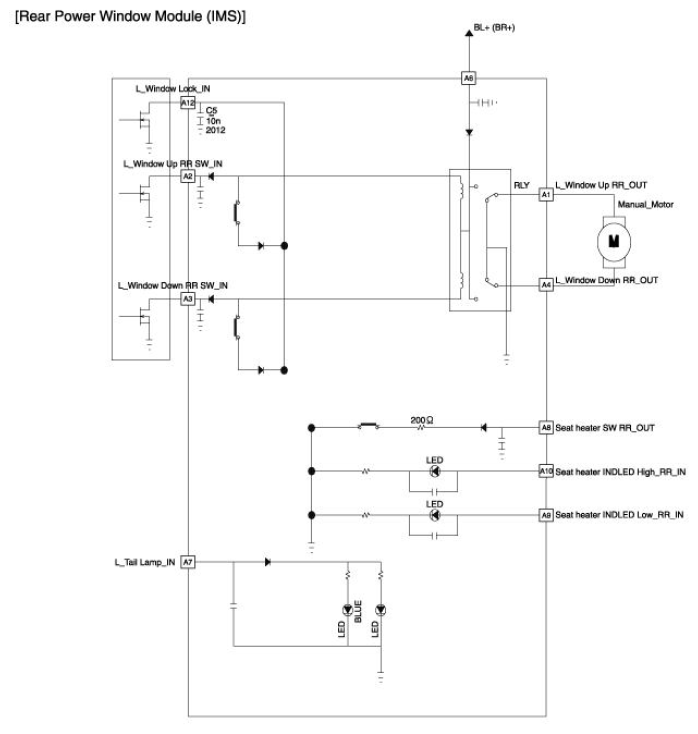

Fig 5: Rear Power Window Module Circuit Diagram (IMS)

Courtesy of HYUNDAI MOTOR AMERICA

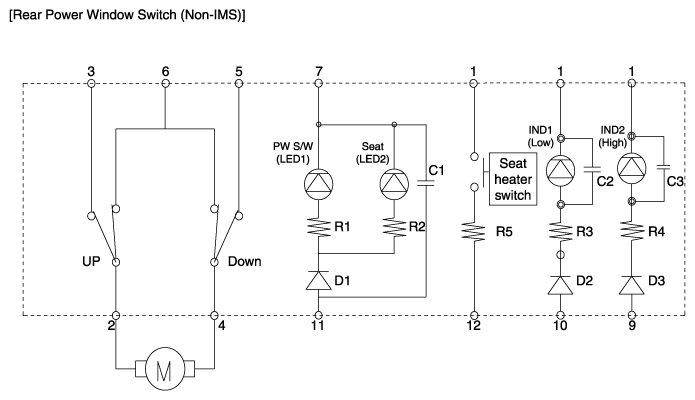

Fig 6: Rear Power Window Module Circuit Diagram (Non IMS)

Courtesy of HYUNDAI MOTOR AMERICA
