Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to: Body - "FRONT SEAT ASSEMBLY ").

  3. Remove the seat back.

    (Refer to: Body - "FRONT SEAT BACK COVER ").

  4. Disconnect the lumbar support motor connector (A).
    Fig 1: Disconnecting Lumbar Support Motor Connector
    G10567692Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the lumbar support assembly after disengaging mounting clip (A).
    Fig 2: Disengaging Mounting Clip
    G10567693Courtesy of HYUNDAI MOTOR AMERICA

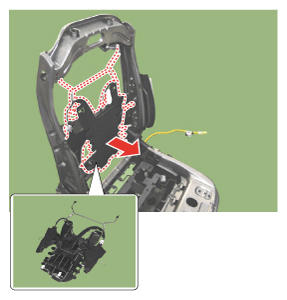

    Fig 3: Identifying Motor Terminals
    G10567694Courtesy of HYUNDAI MOTOR AMERICA
