[Ventilation Blower]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat.

    (Refer to: Body - "FRONT SEAT ASSEMBLY ").

  3. Remove the under cover assembly.

    (Refer to: Body - "FRONT SEAT CUSHION COVER ").

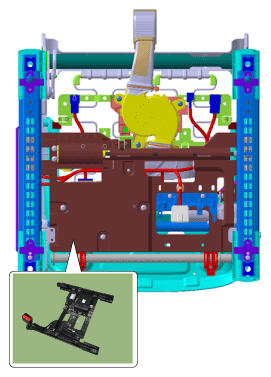

    Fig 1: Removing Under Cover Assembly
    G10567667Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the blower fan (A) after removing the fixed clip (B) and screws.
    Fig 2: Removing Blower Fan
    G10567668Courtesy of HYUNDAI MOTOR AMERICA
    Fig 3: Removing Fixed Clip And Screws
    G10567669Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the front seat back board.

    (Refer to: Body - "FRONT SEAT BACK COVER ").

  6. Remove the duct (A) after remove the screws.
    Fig 4: Identifying Duct
    G10567670Courtesy of HYUNDAI MOTOR AMERICA
