Repair Procedures: Replacement

  1. Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.

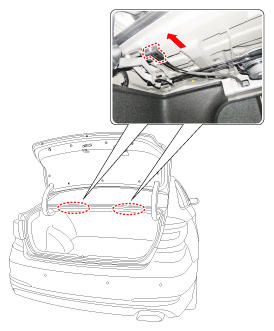

    Fig 1: Pulling Folding Lever
    G10566036Courtesy of HYUNDAI MOTOR AMERICA
    Fig 2: Folding Rear Seat Back Assembly
    G10566037Courtesy of HYUNDAI MOTOR AMERICA
  2. After loosening the mounting bolts, then remove the rear seat folding lever (A).

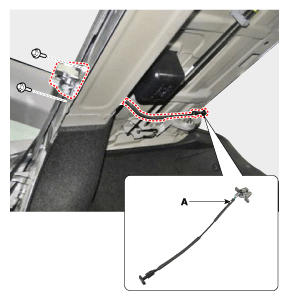

    Fig 3: Identifying Rear Seat Folding Lever With Mounting Bolts
    G10566038Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
