[Rear Seat Cushion Assembly]

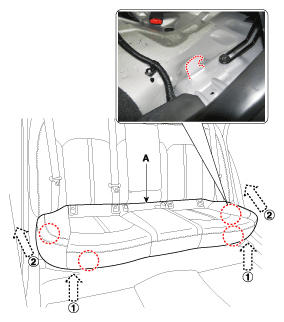

1. Remove the rear seat cushion assembly (A).
   Fig 1: Removing Rear Seat Cushion Assembly

   Courtesy of HYUNDAI MOTOR AMERICA

   Information

   * Rear seat cushion separation method

   1. Remove the rear seat cushion by pulling upward.
   2. Remove the rear seat cushion by pulling upwards while pushing rearward.

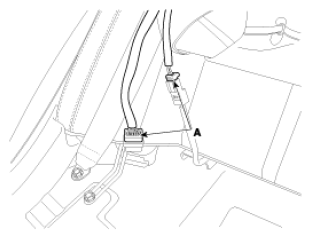

2. Disconnect the heater cushion connector (A).

   [LH]

   Fig 2: Identifying Heater Cushion Connector (LH)

   Courtesy of HYUNDAI MOTOR AMERICA

   [RH]

   Fig 3: Identifying Heater Cushion Connector (RH)

   Courtesy of HYUNDAI MOTOR AMERICA
3. Install in the reverse order of removal.

   Information

   • Make sure the connector is connected properly.

[Rear Seat Back Assembly]

1. Remove the rear seat cushion assembly.

   (Refer to: Rear Seat - "REAR SEAT ASSEMBLY ").

2. After loosening the mounting bolts, then remove the side back cover (A).
   Fig 4: Side Back Cover With Mounting Bolts

   Courtesy of HYUNDAI MOTOR AMERICA
3. After loosening the mounting bolts, then remove the rear seat belt buckle [RH] (A).
   Fig 5: Rear Seat Belt Buckle With Mounting Bolt (RH)

   Courtesy of HYUNDAI MOTOR AMERICA

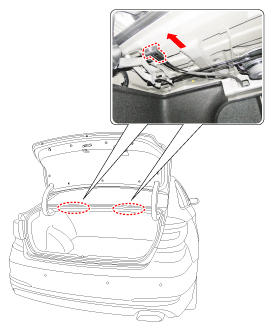

4. Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.
   Fig 6: Pulling Folding Lever Location

   Courtesy of HYUNDAI MOTOR AMERICA
   Fig 7: Folding Rear Seat Back Assembly

   Courtesy of HYUNDAI MOTOR AMERICA

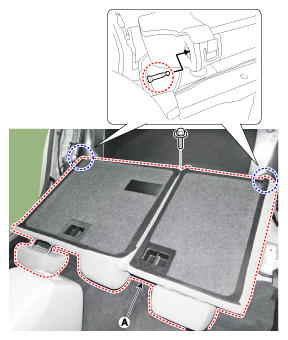

5. After loosening the mounting bolts, then remove the rear seat back assembly (A).
   Fig 8: Rear Seat Back Assembly With Mounting Bolt Location

   Courtesy of HYUNDAI MOTOR AMERICA
6. Install in the reverse order of removal.
