Repair Procedures: Replacement
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Take care not to bend or scratch the trim and panels.

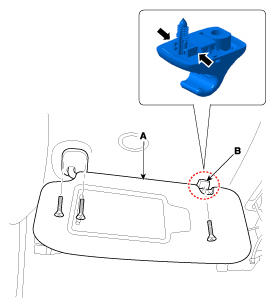

- Loosen the mounting screws, then remove the sunvisor (A) and retainer (B).
- Disconnect the sunvisor lamp connector (A).
- Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
