Components and Components Location: Components

[General Type]

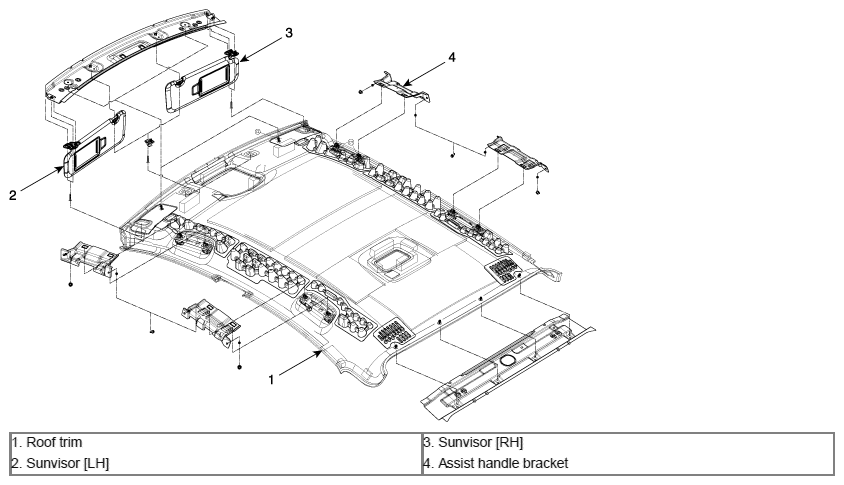

Fig 1: Roof Trim Related Components - General Type
G10565882Courtesy of HYUNDAI MOTOR AMERICA

[Panorama Sunroof Type]

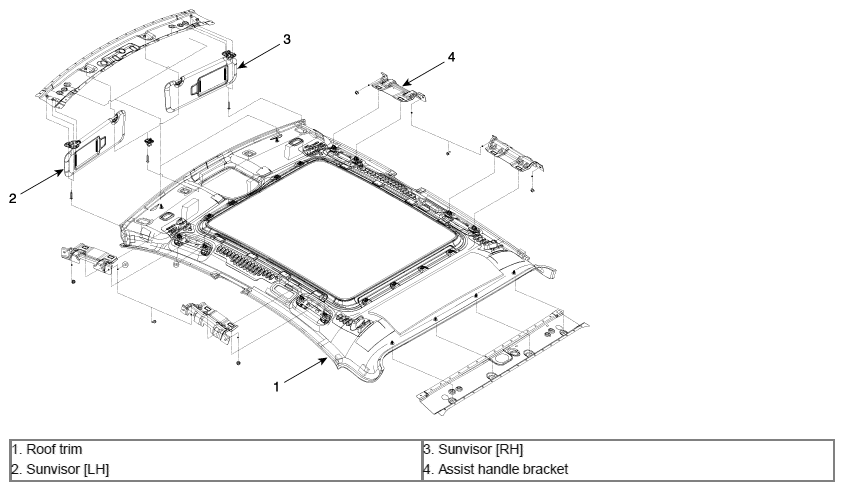

Fig 2: Roof Trim Related Components - Panorama Sunroof Type
G10565883Courtesy of HYUNDAI MOTOR AMERICA
