Repair Procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat.

    (Refer to: Front Seat - "FRONT SEAT ASSEMBLY ").

  2. Remove the rear seat.

    (Refer to: Rear Seat - "REAR SEAT ASSEMBLY ").

  3. Remove the front pillar trim.

    (Refer to: Interior Trim - "FRONT PILLAR TRIM ").

  4. Remove the canter pillar upper trim.

    (Refer to: Interior Trim - "CENTER PILLAR TRIM ").

  5. Remove the rear pillar trim.

    (Refer to: Interior Trim - "REAR PILLAR TRIM ").

  6. Remove the sub sunvisor.

    (Refer to: Roof Trim - "SUNVISOR ").

  7. Remove the sunvisor and retainer.

    (Refer to: Roof Trim - "SUNVISOR ").

  8. Remove the assist handle.

    (Refer to: Roof Trim - "ASSIST HANDLE ").

  9. Remove the overhead console lamp.

    (Refer to: Body Electrical System - "OVERHEAD CONSOLE LAMP ").

  10. Remove the room lamp.

    (Refer to: Body Electrical System - "ROOM LAMP ").

  11. Disconnect the ECM mirror connector.

    (Refer to: Body Electrical System - "Electro Chromic Inside Rear View Mirror").

  12. Disconnect the rain sensor.

    (Refer to: Body Electrical System - "Rain Sensor").

  13. Disconnect the roof trim main connectors (A) and the mounting clips in the front pillar.

    [Driver's]

    Fig 1: Driver'S Roof Trim Main Connectors
    G10565890Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

    Fig 2: Passenger'S Roof Trim Main Connectors
    G10565891Courtesy of HYUNDAI MOTOR AMERICA
  14. Disconnect the connectors (A) and the mounting clips in the rear pillar [RH].
    Fig 3: Rear Pillar Connectors (RH)
    G10565892Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the roof trim mounting clip and remove the roof trim assembly (A).
    NOTE: Be careful not to wrinkle on the roof trim.

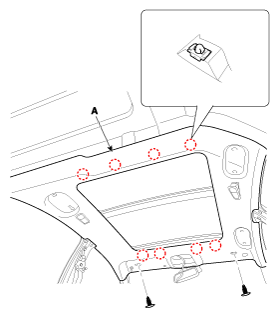

    Fig 4: Roof Trim Assembly With Mounting Clips
    G10565893Courtesy of HYUNDAI MOTOR AMERICA
  16. Disconnect the roof trim main connector (A).
    Fig 5: Roof Trim Main Connector
    G10565894Courtesy of HYUNDAI MOTOR AMERICA
  17. Remove the roof trim assembly (A) from the body panel and then carry it out of the vehicle through the rear door.
    Fig 6: Identifying Roof Trim Assembly
    G10565895Courtesy of HYUNDAI MOTOR AMERICA
  18. Remove the vanity lamp.

    (Refer to: Body Electrical System - "VANITY LAMP ").

  19. Remove roof trim wiring harness (A) from the roof trim (B).
    NOTE:
    • Take care not to damage the roof trim wiring harness (A) when removing.
    Fig 7: Roof Trim And Roof Trim Wiring Harness
    G10565896Courtesy of HYUNDAI MOTOR AMERICA

    Information

    1. Apply the hot melt continuously when installing the roof trim wiring harness (A) on the roof trim (B) using the hot melt gun tool.
    2. Put anti-noise pad on roof trim (B) to prevent the noise.
  20. Install in the reverse order of removal.

    Information

    • Make sure the connector is plugged in properly.
    • Replace any damaged clips.
