Repair Procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape and apply protective tape around the related parts to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care NOT to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front pillar trim.

    (Refer to: Interior Trim - "FRONT PILLAR TRIM ").

  3. Remove the cowl side trim.

    (Refer to: Interior Trim - "COWL SIDE TRIM ").

  4. Remove the AVN head unit.

    (Refer to: Body Electrical System - "AVN Head Unit").

  5. Remove the instrument cluster.

    (Refer to: Body Electrical System - "INSTRUMENT CLUSTER ").

  6. Remove the crash pad side garnish assembly.

    (Refer to: Crash Pad - "CRASH PAD SIDE GARNISH ASSEMBLY [RH] ").

  7. Down the steering column after loosening the mounting bolts.

    (Refer to: Steering System - "STEERING COLUMN AND SHAFT ").

  8. Remove the multifunction switch assembly.

    (Refer to: Body Electrical System - "MULTIFUNCTION SWITCH ").

  9. Remove the knee airbag (KAB) module.

    (Refer to: Restraint - "KNEE AIRBAG (KAB) MODULE ").

  10. Remove the indoor antenna.

    (Refer to: Body Electrical System - "SMART KEY UNIT ").

  11. After loosening the mounting screws, remove the crash pad upper panel [LH] (A).
    Fig 1: Crash Pad Upper Panel (LH) With Mounting Screws
    G10565857Courtesy of HYUNDAI MOTOR AMERICA
  12. Disconnect the photo sensor connector (A).
    Fig 2: Identifying Photo Sensor Connector
    G10565858Courtesy of HYUNDAI MOTOR AMERICA
  13. Loosen the mounting bolts (A).
    Fig 3: Main Crash Pad Assembly Mounting Bolts Location
    G10565859Courtesy of HYUNDAI MOTOR AMERICA
  14. Disconnect the passenger's airbag connectors (B).
    Fig 4: Identifying Passengers Airbag Connectors
    G10565860Courtesy of HYUNDAI MOTOR AMERICA
  15. After loosen the mounting screws, remove the crash pad center lower cover (A).

    [LH]

    Fig 5: Crash Pad Center Lower Cover With Mounting Screws (LH) Location
    G10565861Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    Fig 6: Crash Pad Center Lower Cover With Mounting Screws (RH) Location
    G10565862Courtesy of HYUNDAI MOTOR AMERICA
  16. After loosening the mounting bolts and nuts, remove the main crash pad assembly (A).

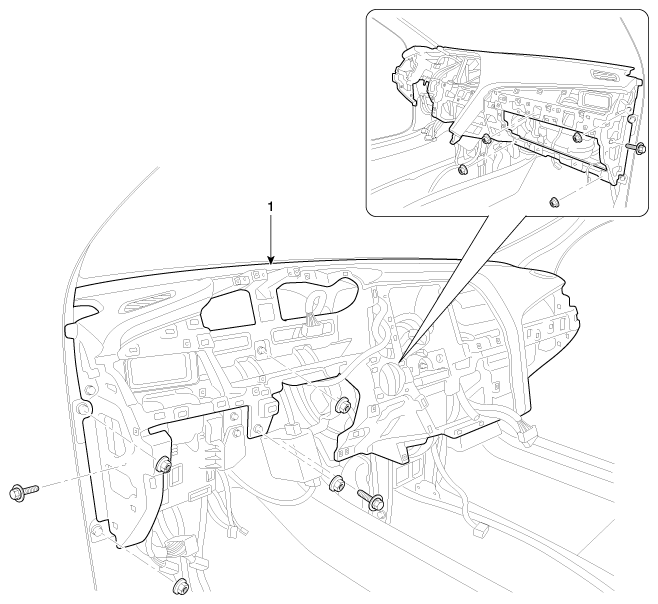

    Fig 7: Main Crash Pad Assembly With Mounting Bolts And Nuts Location
    G10565863Courtesy of HYUNDAI MOTOR AMERICA
  17. Right before removing the main crash pad, slightly lift the main crash pad and remove the twitter speaker connector (A) and mounting clip located at the end of both side.

    [LH]

    Fig 8: Identifying Twitter Speaker Connector (LH)
    G10565864Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    Fig 9: Identifying Twitter Speaker Connector (RH)
    G10565865Courtesy of HYUNDAI MOTOR AMERICA

    [Center]

    Fig 10: Identifying Twitter Speaker Connector (Center)
    G10565866Courtesy of HYUNDAI MOTOR AMERICA
  18. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are NOT pinched.
    • Make sure the connectors are plugged in properly and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
