Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape and apply protective tape around the related parts to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care NOT to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Recover the refrigerant with a recovery / recycling / charging station.
When the engine is cool, drain the engine coolant from the radiator.
(Refer to: Engine Mechanical System - "COOLANT ").
Remove the cowl top cover.
(Refer to: "Cowl Top Cover").
Disconnect the expansion valve from the evaporator core.
(Refer to: Heating, Ventilation And Air Conditioning - "HEATER UNIT ").
Disconnect the inlet and outlet heater hoses from the heater unit.
(Refer to: Heating, Ventilation And Air Conditioning - "HEATER UNIT ").
Loosen the cowl cross member mounting bolts.

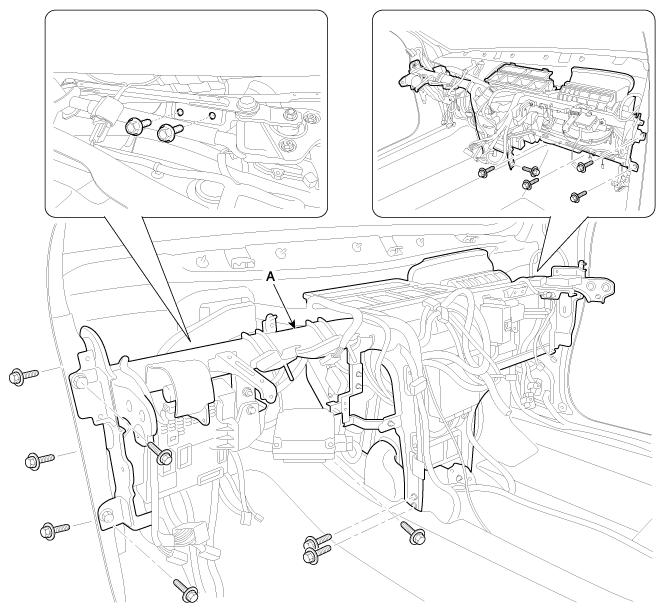

Fig 1: Identifying Cowl Cross Member Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove both sides of front seat assembly.
(Refer to: Front Seat - "FRONT SEAT ASSEMBLY ").
Remove the main crash pad assembly.
(Refer to: Crash Pad - "MAIN CRASH PAD ASSEMBLY ").
Disconnect the steering column connectors.
(Refer to: Steering System - "STEERING COLUMN AND SHAFT ").
Down the steering column after loosening the mounting bolts.
(Refer to: Steering System - "STEERING COLUMN AND SHAFT ").
Remove the shift lever assembly.
(Refer to: Automatic Transaxle System - "SHIFT LEVER ").
Disconnect the airbag control module (SRSCM) connector (A).

Fig 2: Identifying Airbag Control Module (SRSCM) Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A) and the mounting clips in the front pillar.
[Drivers]

Fig 3: Identifying Drivers Front Pillar Connector
Courtesy of HYUNDAI MOTOR AMERICA

[Passengers]

Fig 4: Identifying Passengers Front Pillar Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the passenger compartment junction box connectors (A).

Fig 5: Identifying Passenger Compartment Junction Box Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the multi box connectors (A).
[Drivers]

Fig 6: Identifying Driver'S Multi Box Connectors
Courtesy of HYUNDAI MOTOR AMERICA

[Passengers]

Fig 7: Identifying Passenger'S Multi Box Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Remove the drain hose (A).

Fig 8: Identifying Drain Hose Location
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the nuts and bolts remove the cowl cross bar and heater & blower unit (A) together.

Fig 9: Cowl Cross Bar And Heater & Blower Unit With Nuts And Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the heater & blower unit connectors.
1. Disconnect the blower motor connector (A) and then remove the wiring mounting clips.

  Fig 10: Blower Motor Connector With Wiring Mounting Clips
  Courtesy of HYUNDAI MOTOR AMERICA
2. Disconnect the temperature control actuator (A), mode control actuator (B) connectors and then remove the wiring mounting clips.

  Fig 11: Temperature Control Actuator And Mode Control Actuator Mounting Clips
  Courtesy of HYUNDAI MOTOR AMERICA
3. Disconnect the auto defogging sensor connector (A) and then remove the wiring mounting clips.

  Fig 12: Identifying Auto Defogging Sensor Connector
  Courtesy of HYUNDAI MOTOR AMERICA
4. Disconnect the intake actuator (A), cluster ionizer connector (B), power mosfet (C) connectors and then remove the wiring mounting clips.

  Fig 13: Identifying Intake Actuator, Cluster Ionizer Connector And Power Mosfet
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the heater and blower unit (A) from the cowl cross bar (B) after loosening the mounting nuts.

Fig 14: Locating Cowl Cross Bar, Heater And Blower Unit With Mounting Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are NOT pinched.
- Make sure the connectors are plugged in properly and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, enter the customer's radio station presets.
