Monitor GDS Data
- Connect GDS to "DATA LINK CONNECTOR (DLC)".
- IG key "ON", Engine "OFF".

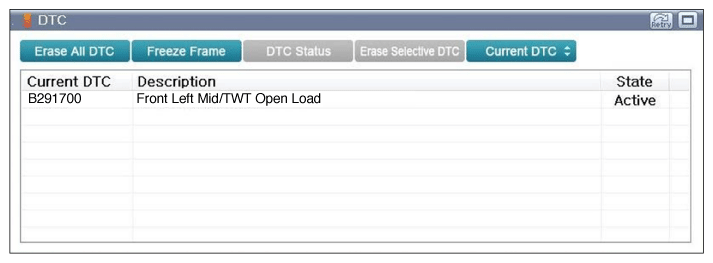

- Select "Diagnostic Trouble Codes (DTC)" with GDS.
- Monitor the Diagnostic Trouble Code and present of the trouble code.
- Erase the DTC.
- Is the DTC set again?
YES
- Go to: "WIRING INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in AMP's connector or was repaired and AHS CM memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary; Go to: "VERIFICATION OF VEHICLE REPAIR " procedure.
