Monitor GDS Data

Connect GDS with Diagnostic Connector.
Engine "ON" and Turn on the auto head light system.
Monitor "Head Lamp Status" parameter in "Current Data" menu on GDS.
Specification: It should be displayed ON when head lamp is ON.

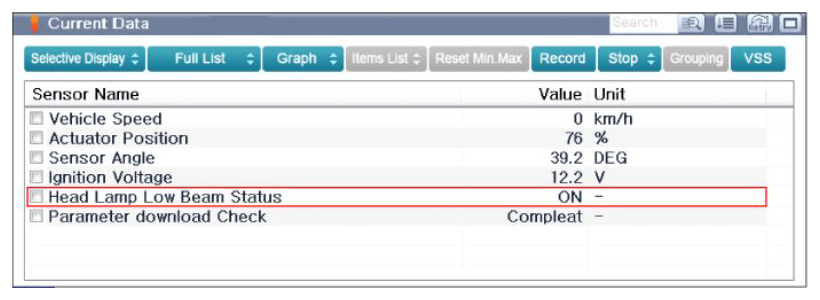

Fig 1: Scantool Display - Engine "ON"
Courtesy of HYUNDAI MOTOR AMERICA
Is current data within specification?
YES
- Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and AHLDM memory is not cleared yet. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Repair or replace as necessary and then go to "WIRING INSPECTION " procedure.
