Rear Parking Assist Sensor RH Connector End View (R42-R)

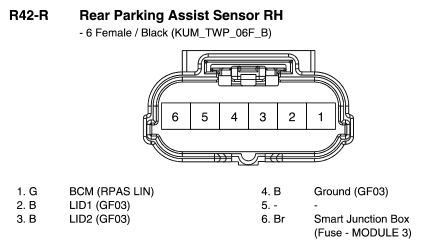

Fig 1: Rear Parking Assist Sensor RH Connector End View (R42-R)

G10788639

Courtesy of HYUNDAI MOTOR AMERICA
