Blind Spot Detection RH Connector End View (R44)

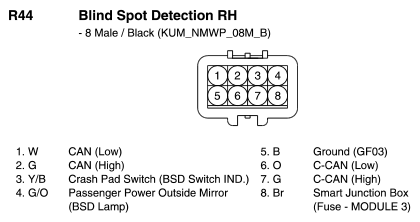

Fig 1: Blind Spot Detection RH Connector End View (R44)

G10788641

Courtesy of HYUNDAI MOTOR AMERICA
