Blind Spot Detection LH Connector End View (R43)

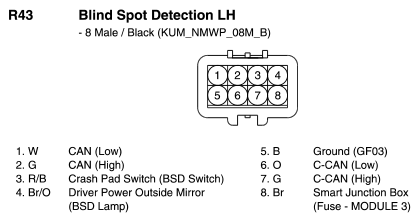

Fig 1: Blind Spot Detection LH Connector End View (R43)

G10788640

Courtesy of HYUNDAI MOTOR AMERICA
