Circuit Diagram

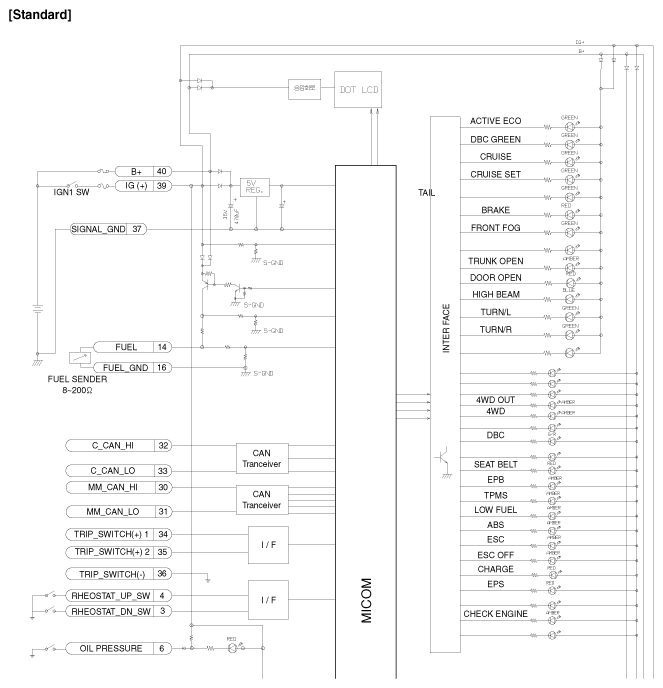

Fig 1: Instrument Cluster Circuit Diagram - Standard (1 Of 2)
G10576825Courtesy of HYUNDAI MOTOR AMERICA

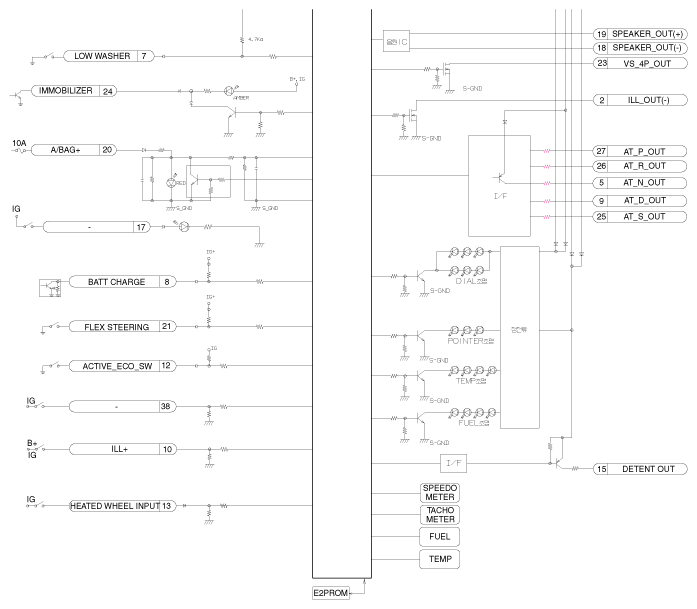

Fig 2: Instrument Cluster Circuit Diagram - Standard (2 Of 2)
G10576826Courtesy of HYUNDAI MOTOR AMERICA

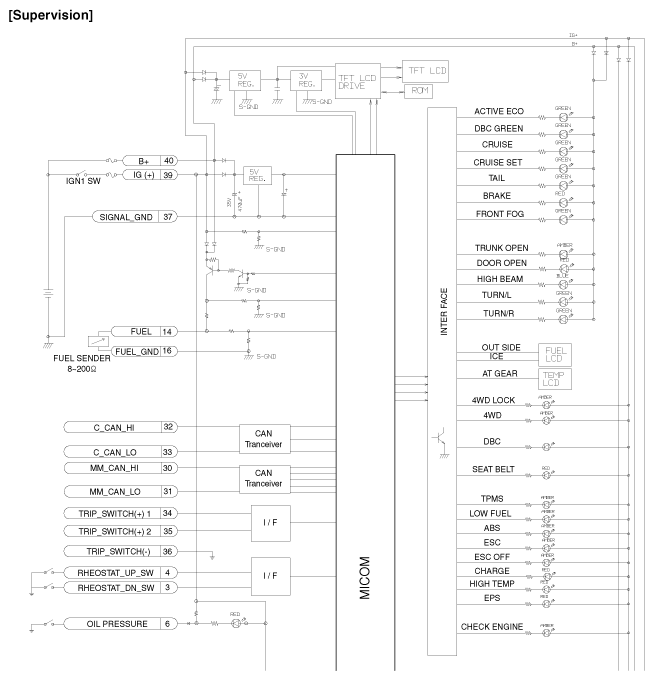

Fig 3: Instrument Cluster Circuit Diagram - Supervision (1 Of 2)
G10576827Courtesy of HYUNDAI MOTOR AMERICA

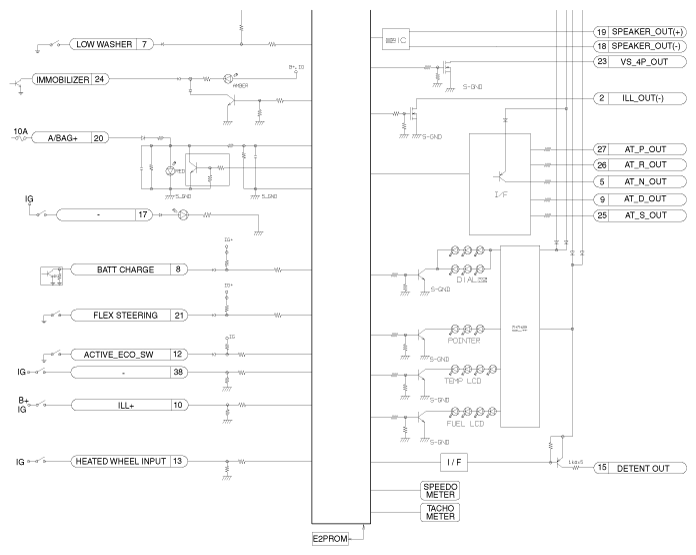

Fig 4: Instrument Cluster Circuit Diagram - Supervision (2 Of 2)
G10576828Courtesy of HYUNDAI MOTOR AMERICA
