Repair procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the stopper (B) from the glove box (A).
   Fig 1: Stopper And Glove Box

   Courtesy of HYUNDAI MOTOR AMERICA
2. Disconnect the air damper (A) from the glove box (B).
   Fig 2: Air Damper And Glove Box

   Courtesy of HYUNDAI MOTOR AMERICA
3. Disconnect the pins (A) and then remove the glove box (B).
   Fig 3: Pins And Glove Box

   Courtesy of HYUNDAI MOTOR AMERICA
4. Remove the gear boots (B) and gear knob (A).
   Fig 4: Gear Boot And Gear Knob

   Courtesy of HYUNDAI MOTOR AMERICA

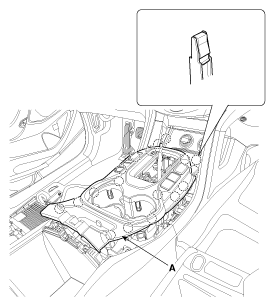

5. Using a screwdriver or remover, remove the console upper cover (A).
   Fig 5: Console Upper Cover

   Courtesy of HYUNDAI MOTOR AMERICA
6. Disconnect the connectors (A).
   Fig 6: Console Upper Cover Connectors

   Courtesy of HYUNDAI MOTOR AMERICA

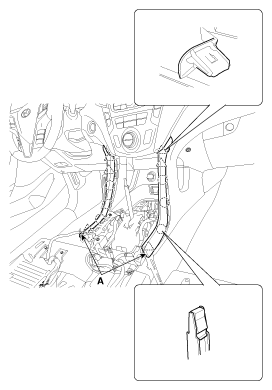

7. Using a screwdriver or remover, remove the front console garnish (A).
   Fig 7: Front Console Garnish

   Courtesy of HYUNDAI MOTOR AMERICA
8. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).
   Fig 8: Crash Pad Side Cover - RH

   Courtesy of HYUNDAI MOTOR AMERICA
9. After loosening the mounting screws, then remove the crash pad garnish [RH] (A).
   Fig 9: Crash Pad Garnish - RH

   Courtesy of HYUNDAI MOTOR AMERICA
10. After loosening the mounting screws, then remove the crash pad under cover [RH] (A).
    Fig 10: Crash Pad Under Cover - RH

    Courtesy of HYUNDAI MOTOR AMERICA
11. Remove the glove box hose cover (A) by sliding it upward.
12. Remove the glove box hose (B) by sliding it upward.
    Fig 11: Glove Box Hose Cover

    Courtesy of HYUNDAI MOTOR AMERICA
    Fig 12: Glove Box Hose

    Courtesy of HYUNDAI MOTOR AMERICA
13. After loosening the mounting screws, then remove the glove box housing (A).
    Fig 13: Glove Box Housing

    Courtesy of HYUNDAI MOTOR AMERICA
14. Disconnect the glove box lamp connector (A) and glove box lamp switch connector (B).
    Fig 14: Glove Box Lamp And Switch Connectors

    Courtesy of HYUNDAI MOTOR AMERICA
15. Install in the reverse order of removal.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips.
