Repair procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the cowl top cover.

   (Refer to "COWL TOP COVER ")

2. Remove the main crash pad assembly.

   (Refer to "MAIN CRASH PAD ASSEMBLY ")

3. Disconnect the steering column connectors.

   (Refer to "STEERING COLUMN AND SHAFT ")

4. Down the steering column after loosening the mounting bolts.

   (Refer to "STEERING COLUMN AND SHAFT ")

5. Disconnect the blower unit connectors.
6. After loosening the mounting bolts, then remove the rear air duct (A).
   Fig 1: Rear Air Duct

   Courtesy of HYUNDAI MOTOR AMERICA
7. Disconnect the passenger compartment junction box connectors (A).
   Fig 2: Passenger Compartment Junction Box Connectors

   Courtesy of HYUNDAI MOTOR AMERICA
8. Disconnect the multi box connectors (A).

   Driver's

   Fig 3: Multi Box Connectors - Driver's

   Courtesy of HYUNDAI MOTOR AMERICA

   Passenger's

   Fig 4: Multi Box Connectors - Passenger's

   Courtesy of HYUNDAI MOTOR AMERICA
9. Disconnect the airbag control module (SRSCM) connector (A).
   Fig 5: Airbag Control Module Connector

   Courtesy of HYUNDAI MOTOR AMERICA
10. Disconnect the connector (A) and the mounting clips in the front pillar.

    Driver's

    Fig 6: Mounting Clips In Front Pillar - Driver's

    Courtesy of HYUNDAI MOTOR AMERICA

    Passenger's

    Fig 7: Mounting Clips In Front Pillar - Passenger's

    Courtesy of HYUNDAI MOTOR AMERICA
11. Loosen the BCM (Body Control Module) mounting bolt (A).
    Fig 8: Body Control Module Mounting Bolt

    Courtesy of HYUNDAI MOTOR AMERICA
12. Disconnect the ICM relay box connector (A).
    Fig 9: ICM Relay Box Connector

    Courtesy of HYUNDAI MOTOR AMERICA

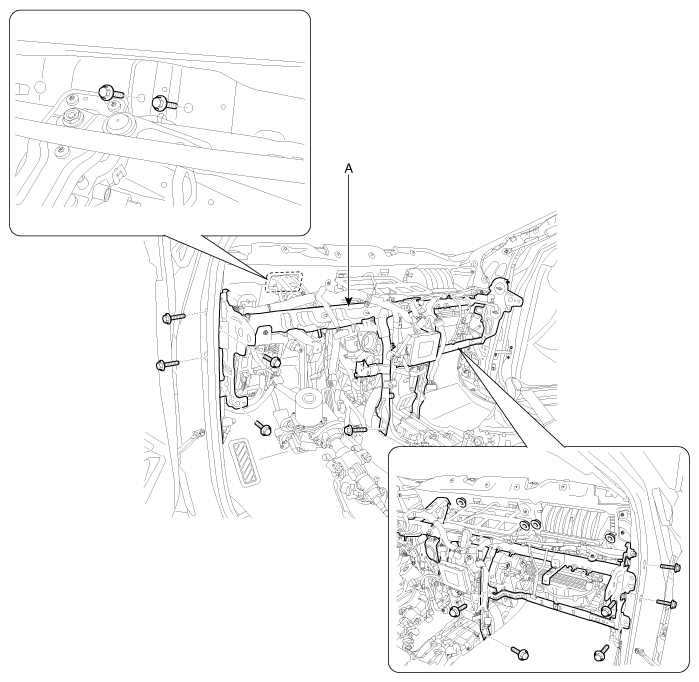

13. After loosening the mounting bolts and nuts, then remove the cowl cross bar assembly (A).
    Fig 10: Cowl Cross Bar Assembly

    Courtesy of HYUNDAI MOTOR AMERICA
14. Install in the reverse order of removal.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
