Driver Seat Warmer Module Connector End View (S10)

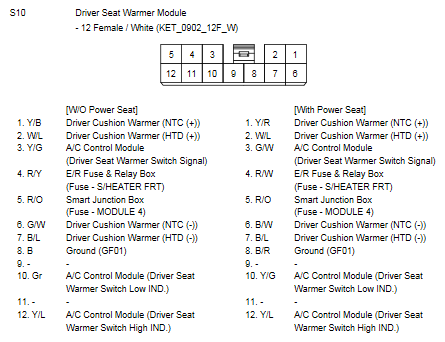

Fig 1: Driver Seat Warmer Module Connector End View (S10)

G10732865

Courtesy of HYUNDAI MOTOR AMERICA
