Home >> Hyundai >> 2015 >> Elantra Sport, Automatic Trans >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc Brake & Drum Brake System >> Brake Pedal >> Components and Components Location >> Components

Components and Components Location: Components

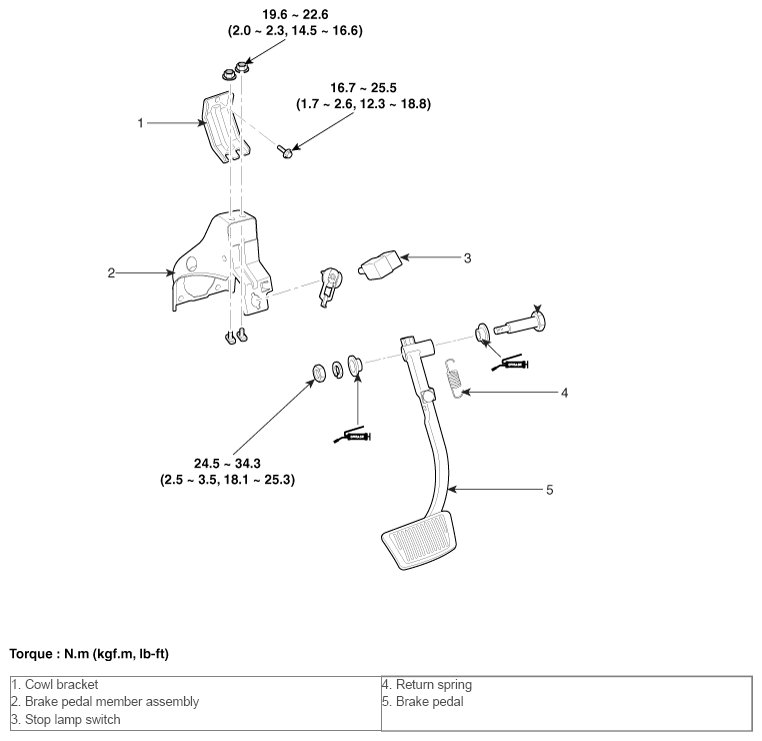

Fig 1: Brake Pedal Components With Torque Specifications

G10530631

Courtesy of HYUNDAI MOTOR AMERICA
