Home >> Hyundai >> 2015 >> Elantra Sport, Automatic Trans >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc Brake & Drum Brake System >> Brake Line >> Components and Components Location >> Components

Components and Components Location: Components

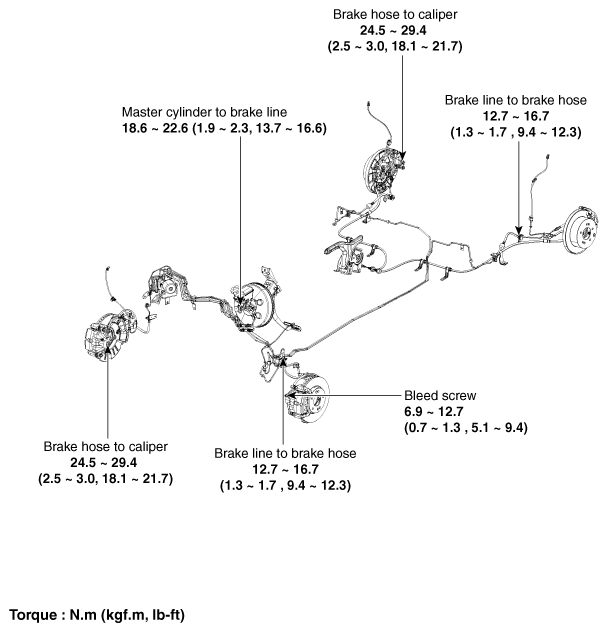

Fig 1: Brake Line Components With Torque Specifications
G10530623Courtesy of HYUNDAI MOTOR AMERICA
