Front To Control Harness Connection (G4NC) Connector End View (EC11)

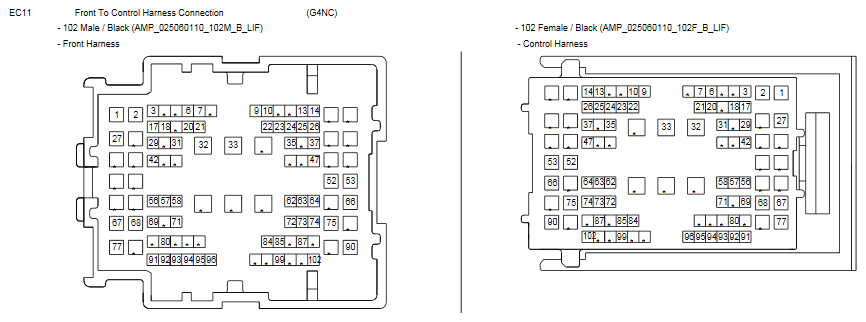

Fig 1: Front To Control Harness Connection (G4NC) Connector End View (EC11)

G10733214

Courtesy of HYUNDAI MOTOR AMERICA
