SRS Control Module Connector End View (F49)

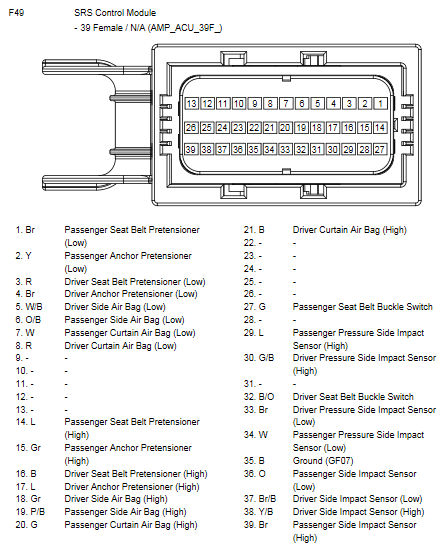

Fig 1: SRS Control Module Connector End View (F49)

G10732488

Courtesy of HYUNDAI MOTOR AMERICA
