Components And Components Location: Components

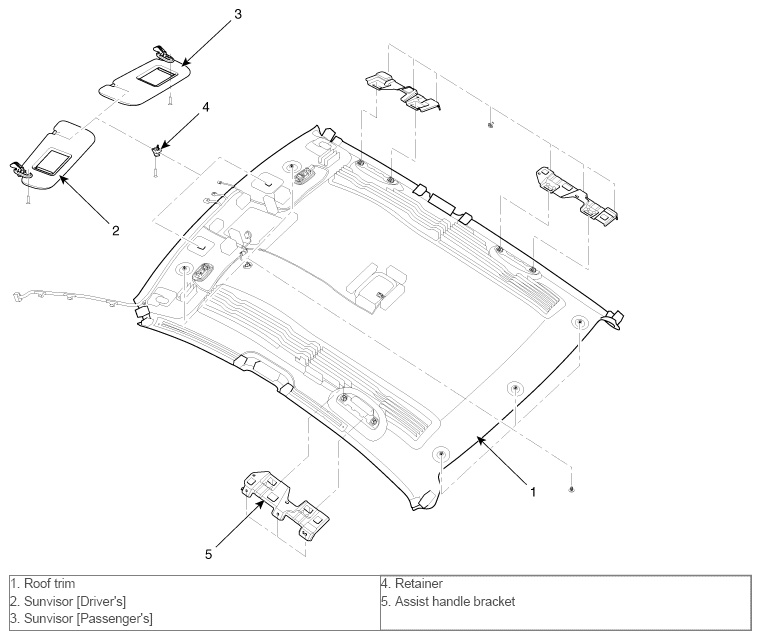

Fig 1: Roof Trim Components

G10534277

Courtesy of HYUNDAI MOTOR AMERICA
