Cowl Cross Bar Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
1. Front seat
  (Refer to "FRONT SEAT ")
2. Floor console assembly
  (Refer to "CONSOLE ")
3. Cowl top cover
  (Refer to "COWL TOP COVER ")
4. Main crash pad
Disconnect the blower unit connectors.
(Refer to "BLOWER SYSTEM ")
Disconnect the multi box connectors.
[Driver's]

Fig 1: Multi Box Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the multi box connectors.
[Passenger's]

Fig 2: Multi Box Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the passenger compartment junction box connectors.

Fig 3: Passenger Side Compartment Junction Box Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the airbag control module (SRSCM) connectors (A).

Fig 4: Airbag Control Module (SRSCM) Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A) and the mounting clips in the front pillar.
[Driver's]

Fig 5: Front Pillar Connector
Courtesy of HYUNDAI MOTOR AMERICA

[Passenger's]

Fig 6: Front Pillar Connector
Courtesy of HYUNDAI MOTOR AMERICA

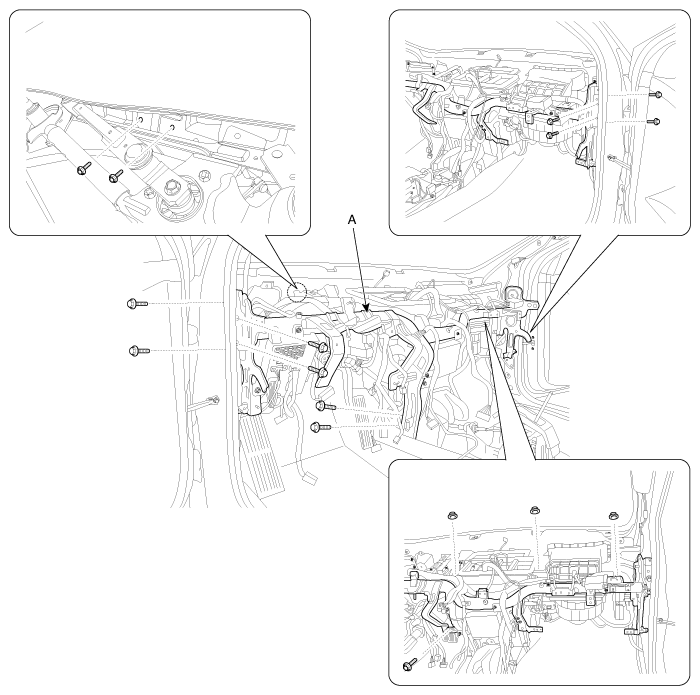

After loosening the mounting bolts and nuts, then remove the cowl cross bar assembly (A).

Fig 7: Cowl Cross Bar Assembly, Mounting Bolts And Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
