Home >> Hyundai >> 2015 >> Elantra SE, Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Interior Trim And Glass >> Console >> Components And Components Location >> Components >> [M/T]

Components And Components Location: Components: [M/T]

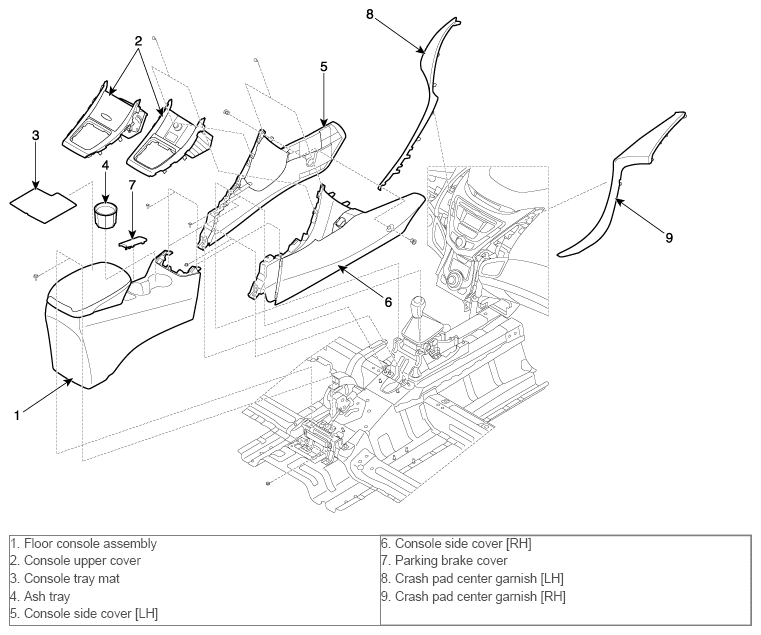

Fig 1: Console Component Locations (M/T)

G10534203

Courtesy of HYUNDAI MOTOR AMERICA
