Components And Components Location: Components: [A/T]

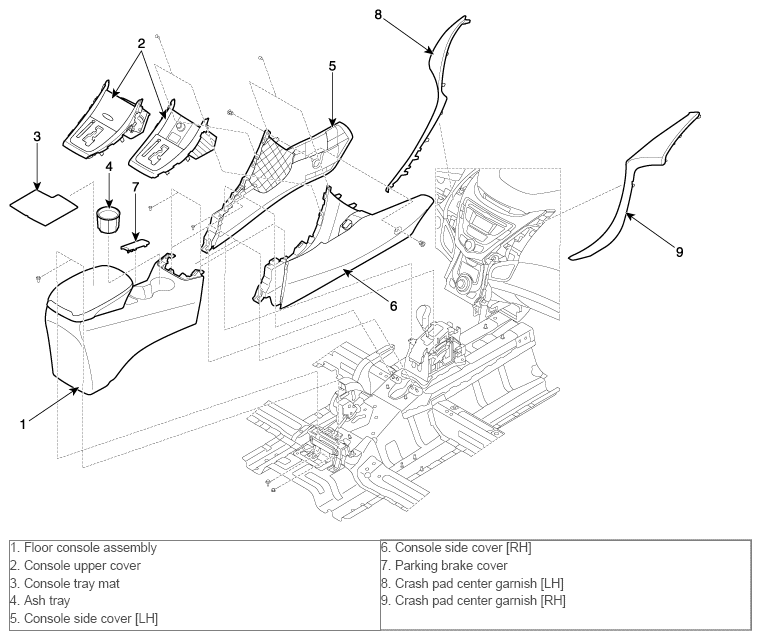

Fig 1: Console Component Locations (A/T)

G10534204

Courtesy of HYUNDAI MOTOR AMERICA
