Components and Components Location: Components

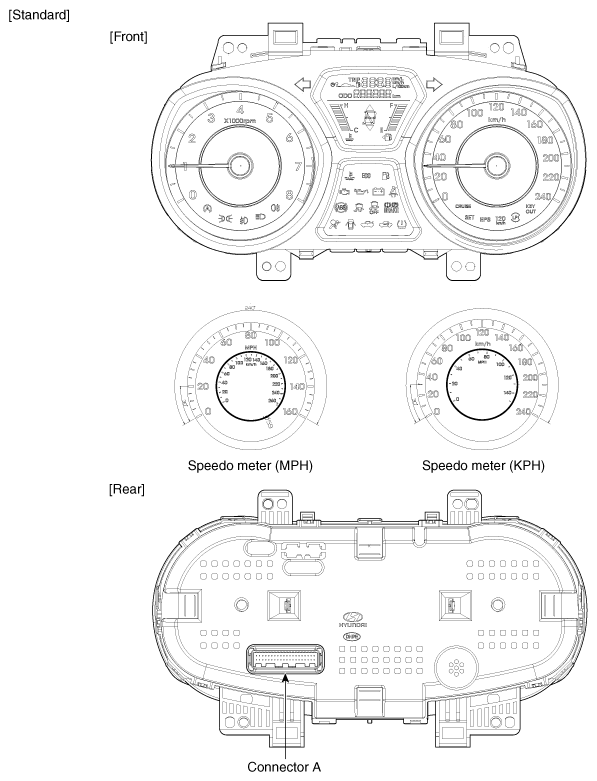

Fig 1: Instrument Cluster (Standard) Components And Connector Terminal Identification (1 Of 2)
G10530998Courtesy of HYUNDAI MOTOR AMERICA

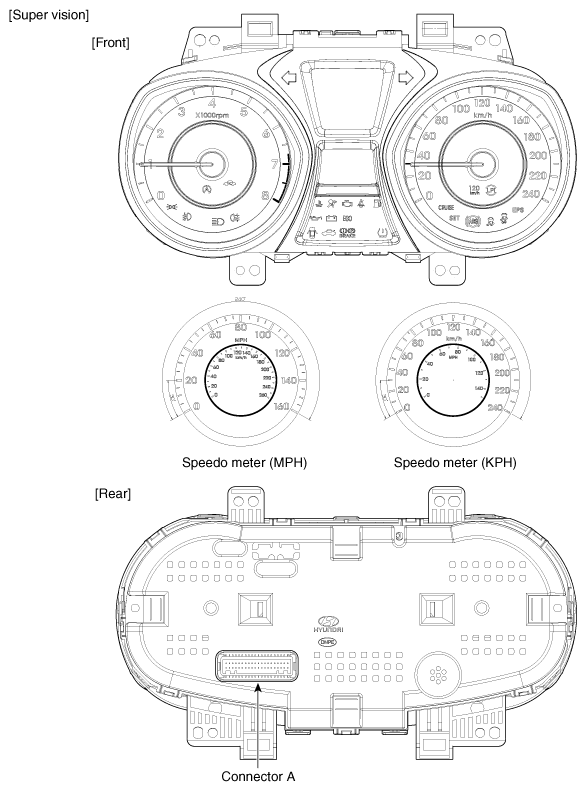

Fig 2: Instrument Cluster (Super Vision) Components And Connector Terminal Identification (1 Of 2)
G10530999Courtesy of HYUNDAI MOTOR AMERICA

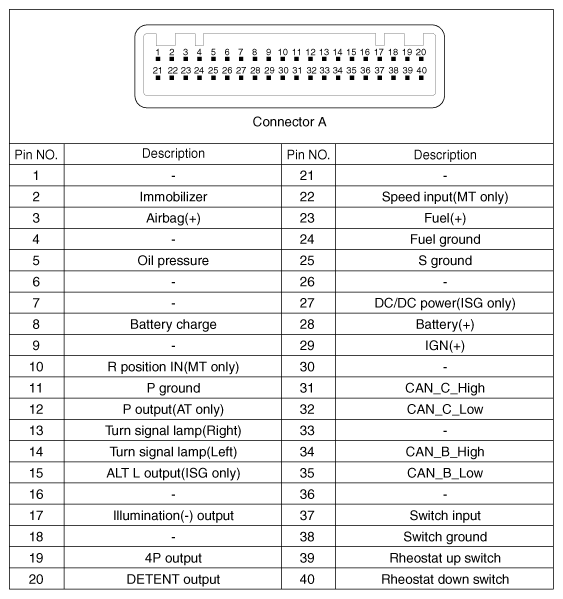

Fig 3: Instrument Cluster Components And Connector Terminal Identification (2 Of 2)
G10531000Courtesy of HYUNDAI MOTOR AMERICA
