Repair Procedures: Removal

  1. Detach the rear wiper head cap (A).

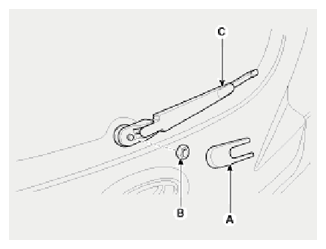

    Fig 1: Identifying Rear Wiper Head Cap
    G09135236Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the rear wiper arm & blade (A) after removing rear wiper arm nut (B).
    Fig 2: Identifying Rear Wiper Arm & Blade And Rear Wiper Arm Nut
    G09135237Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the rear wiper grommet.
  4. Open the tailgate then remove the tailgate trim.

    (Refer to TAIL GATE

  5. Disconnect the rear wiper motor connector (A) then remove the rear wiper motor (B) after loosening bolts (3EA).

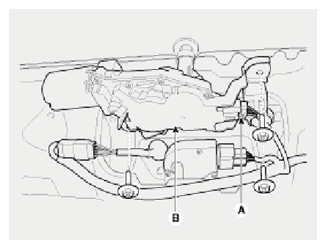

    Fig 3: Identifying Rear Wiper Motor And Connector
    G09135238Courtesy of HYUNDAI MOTOR AMERICA
