Glove Box Housing Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the stopper (B) from the glove box (A).

Fig 2: Disconnecting Stopper From Glove Box
Courtesy of HYUNDAI MOTOR CO.
Remove the air damper (A) from the glove box (B).

Fig 3: Disconnecting Air Damper From Glove Box
Courtesy of HYUNDAI MOTOR CO.

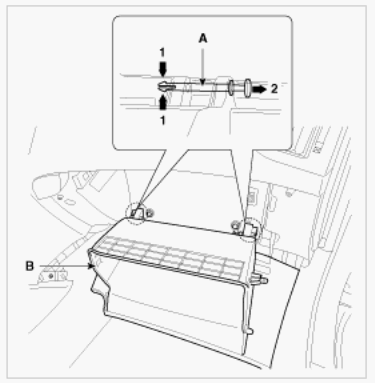

Disconnect the pin (A), then remove the glove box (B).

Fig 4: Disconnecting Pin From Glove Box
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws and bolts, remove the glove box housing (A).

Fig 5: Identifying Glove Box Housing & Mounting Screws
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.

NOTE: Replace any damaged clips.
