Center Fascia Panel Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the center fascia upper panel (A).

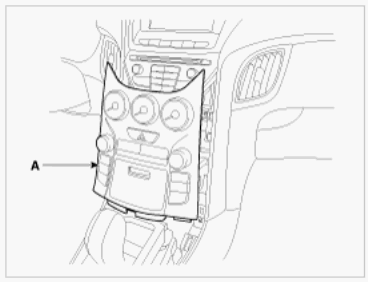

Fig 1: Identifying Center Fascia Upper Panel
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 2: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver or remover, remove the console upper cover (A).

Fig 3: Identifying Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver or remover, remove the center fascia lower panel (A).

Fig 4: Identifying Center Fascia Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors (A).

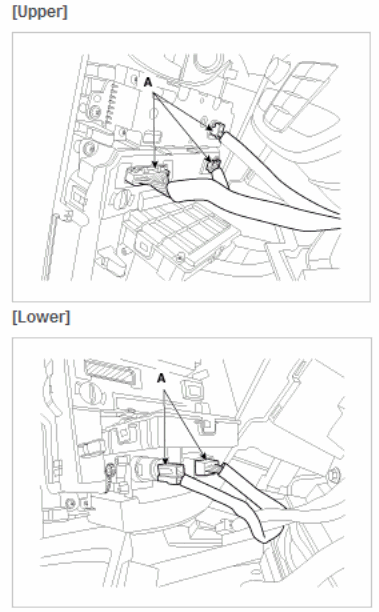

Fig 5: Identifying Connectors
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
