Home >> Hyundai >> 2014 >> Genesis Coupe 2.0T, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Indicators And Gauges >> Instrument Cluster >> Components and Component Locations >> Components

Components and Component Locations: Components

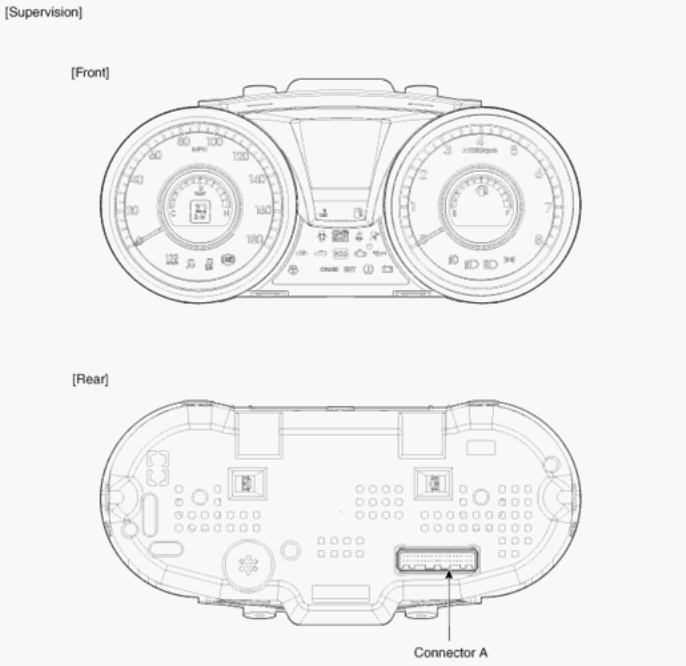

Fig 1: Identifying Instrument Cluster & Connector (Supervision)
G00538598Courtesy of HYUNDAI MOTOR CO.

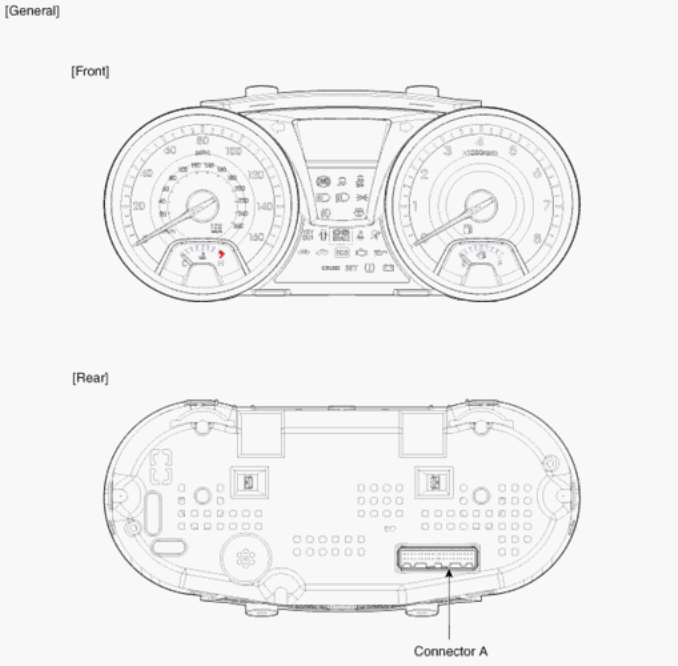

Fig 2: Identifying Instrument Cluster & Connector (General)
G00538599Courtesy of HYUNDAI MOTOR CO.

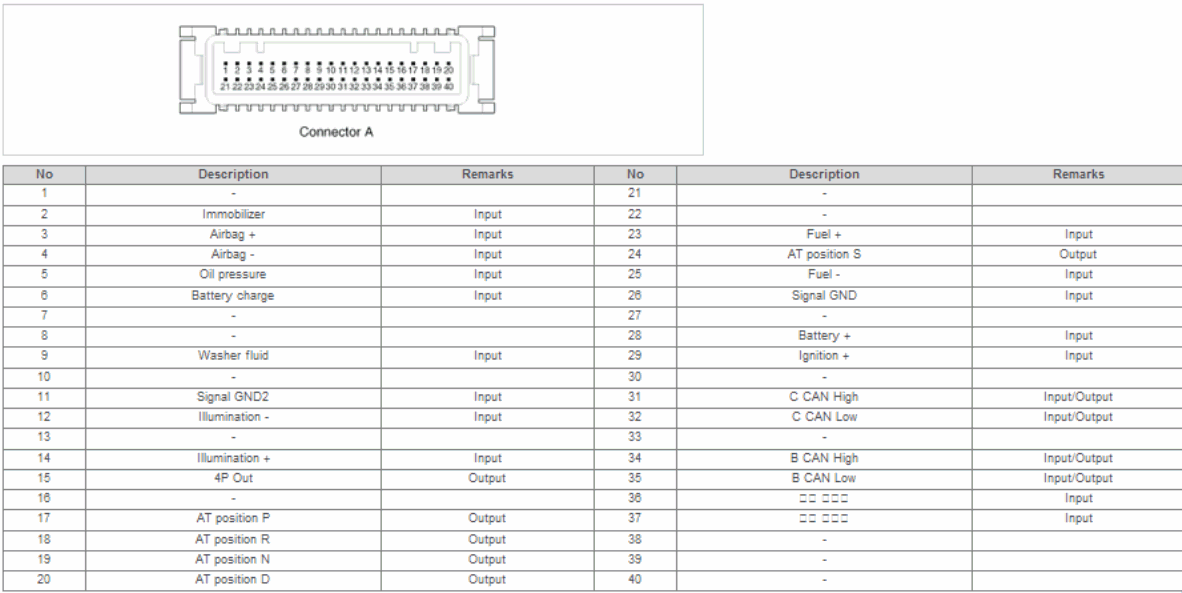

Fig 3: Instrument Cluster Terminals Chart
G00538600Courtesy of HYUNDAI MOTOR CO.
