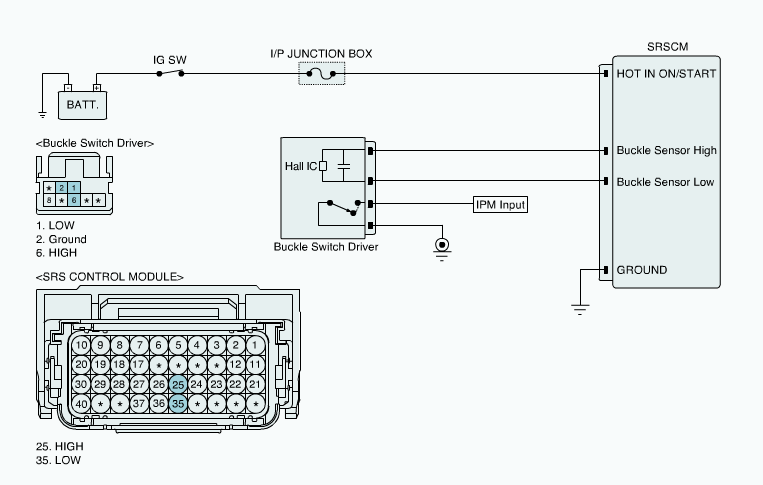

Home >> Hyundai >> 2014 >> Genesis 3.8 >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #2) System Diagnosis - 5.0L (2 Of 2) >> DTC B1511: Buckle Switch Driver open or short to Battery >> General Information >> Diagnostic Circuit Diagram
