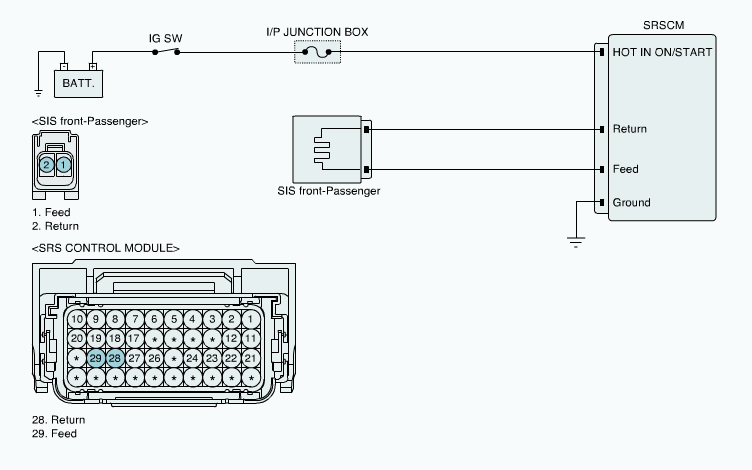

Home >> Hyundai >> 2014 >> Genesis 3.8 >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #2) System Diagnosis - 5.0L (1 Of 2) >> DTC B1404: SIS (Side Impact Sensor)Front-Passenger Circuit Short to Ground >> General Information >> Diagnostic Circuit Diagram
