Monitor Scantool Data

  1. Ignition "OFF", connect scantool.
  2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
  3. Monitor diagnostic trouble code and present of trouble code.
  4. Using a scan tool, clear the DTC.

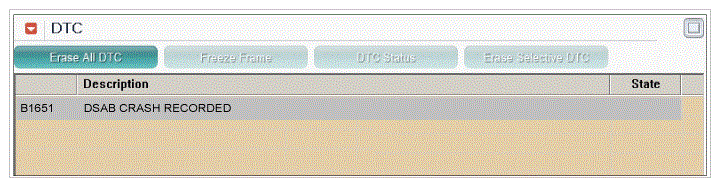

    Fig 1: Display - DSAB Crash Recorded
    G08835565Courtesy of HYUNDAI MOTOR AMERICA
  5. Is DTC present problem?

    YES

    • DTC caused by deployment of front driver sab front driver sab and driver cab. Substitute with a SRSCM and check for proper operation. If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
