Squib Circuit Inspection

  1. Ignition "OFF"
  2. Disconnect (-) terminal cable from battery and wait for 1 minutes or more.
  3. Disconnect DCAB module and connect the dummy (0957A-38200) and dummy adapter (0957A-1C000) to main harness connector.
    NOTE: If dummy and dummy adaptor are not able to be prepared, use a known-good DCAB or 2Ω resistor.
  4. Connect (-) terminal cable to battery and Ignition "ON" & Engine "OFF" and wait for 30 seconds or more.
  5. Connect scantool to Data Link Connector (DLC) and clear DTC with scantool and diagnose again.

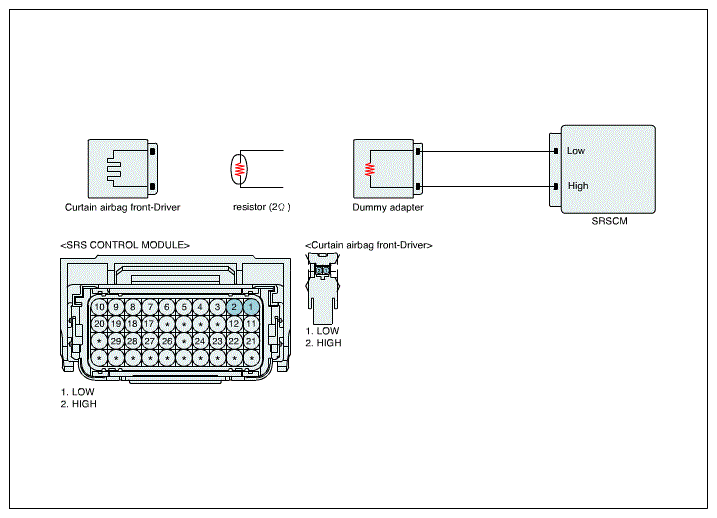

    Fig 1: Curtain Airbag Front-Driver And SRSCM - Circuit Diagram
    G08835441Courtesy of HYUNDAI MOTOR AMERICA
  6. Is DTC present problem?

    YES

    NO

    • Substitute a known-good DCAB assembly, and check for proper operation.

      If the problem is corrected, replace DCAB and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
