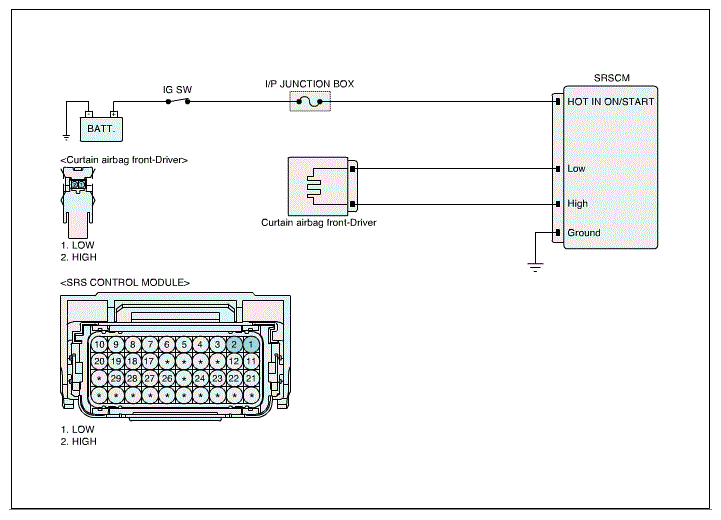

Home >> Hyundai >> 2014 >> Genesis 3.8 >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #1) System Diagnosis - 3.8L (2 Of 2) >> DTC B1473: Inflatable Curtain Airbag Front Driver Resistance too High >> General Information >> Diagnostic Circuit Diagram
