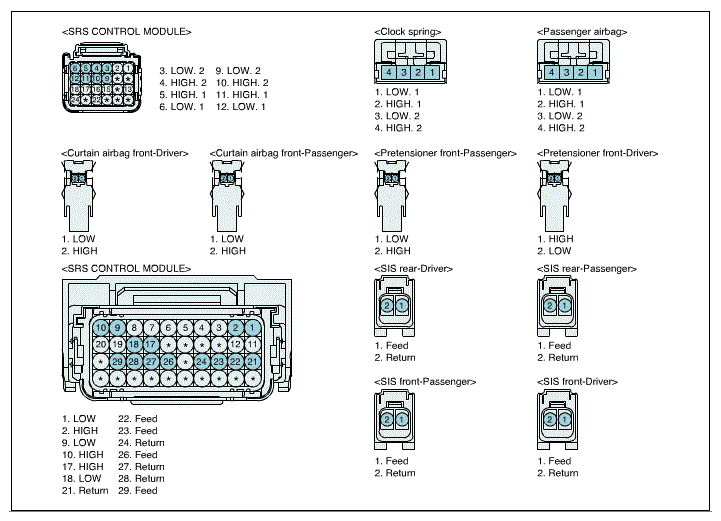

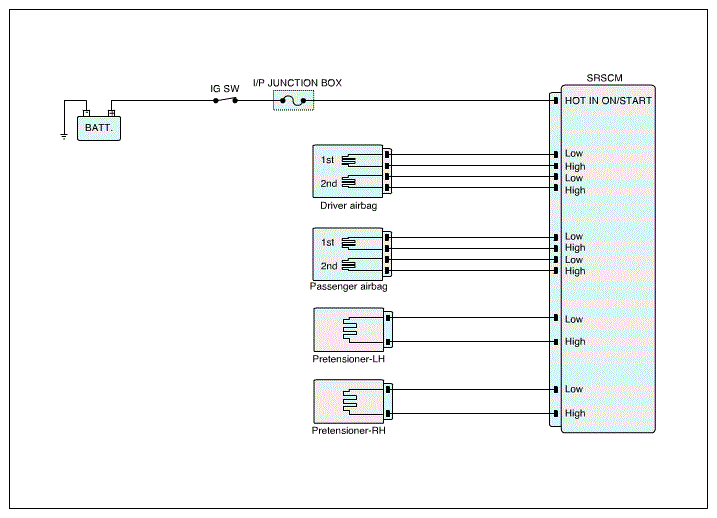

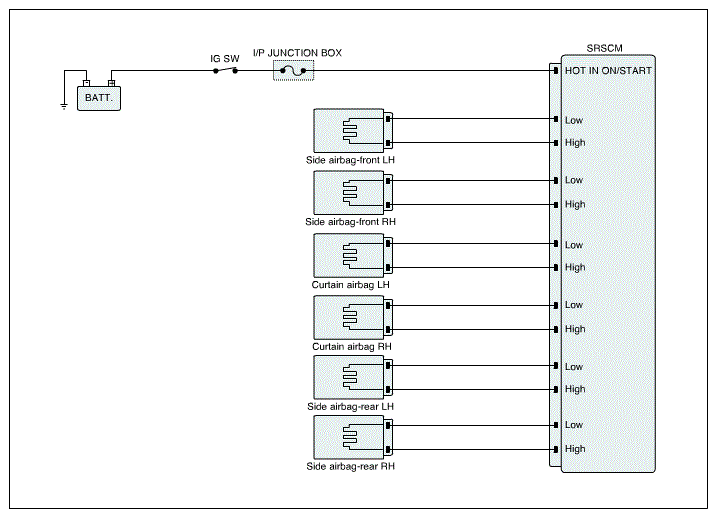

Home >> Hyundai >> 2014 >> Genesis 3.8 >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag (Event #1) System Diagnosis - 3.8L (1 Of 2) >> DTC B1395: Firing Loops Interconnection Fault >> General Information >> Diagnostic Circuit Diagram
