Main harness Circuit Inspection

Ignition "OFF".
Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
Disconnect DFIS connector and SRSCM main harness connector.
Ignition "ON" & Engine "OFF"
Measure voltage between terminal "FIS-Driver (+)" or "FIS-Driver (-)" of the DFIS harness connector and chassis ground.
Specification: 0V

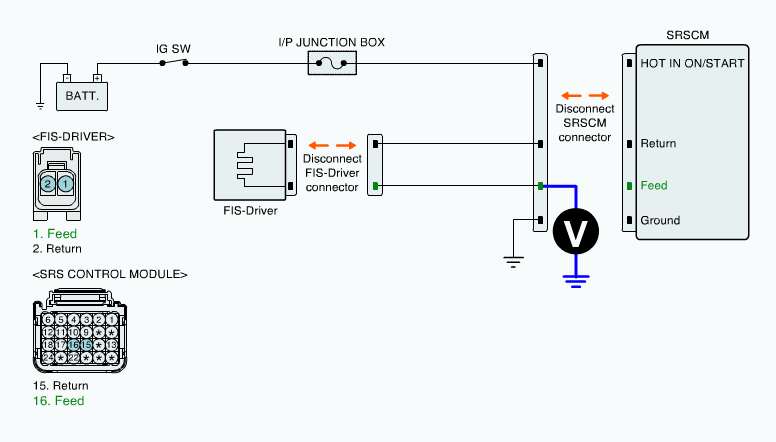

Fig 1: Measuring Voltage Between Terminal FIS-Driver (+) Or FIS-Driver (-) Of DFIS Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured Voltage within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Substitute the SRSCM main harness and check for proper operation.
  If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
