Circuit Diagram

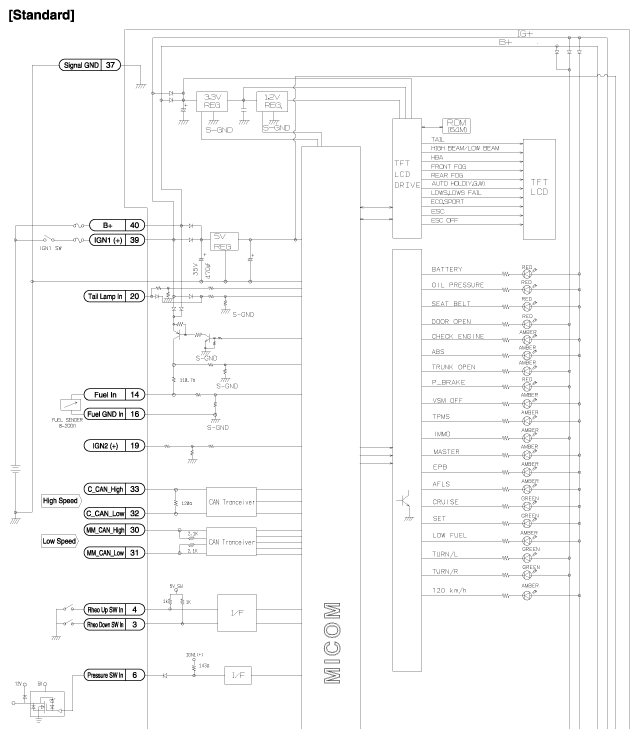

Fig 1: Instrument Cluster Circuit Diagram (Standard; 1 Of 2)
G09791140Courtesy of HYUNDAI MOTOR AMERICA

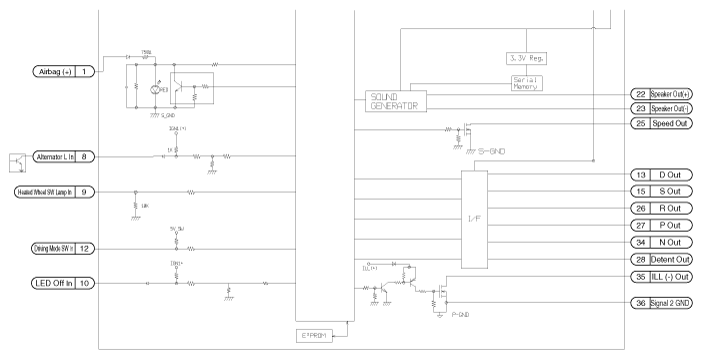

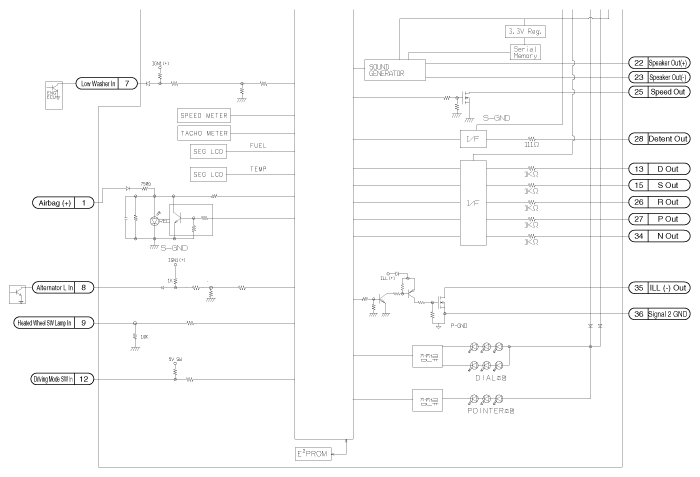

Fig 2: Instrument Cluster Circuit Diagram (Standard; 2 Of 2)
G09791141Courtesy of HYUNDAI MOTOR AMERICA

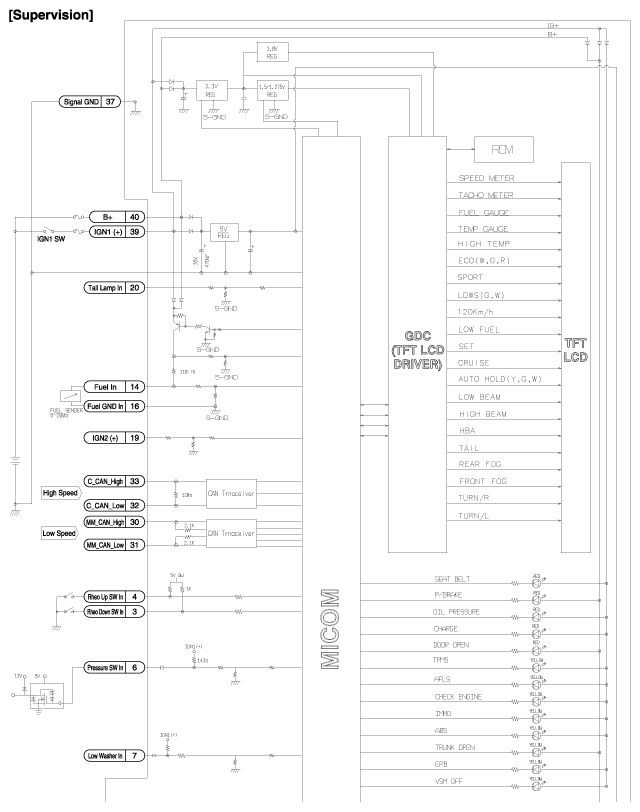

Fig 3: Instrument Cluster Circuit Diagram (Supervision; 1 Of 2)
G09791142Courtesy of HYUNDAI MOTOR AMERICA
Fig 4: Instrument Cluster Circuit Diagram (Supervision; 2 Of 2)
G09791143Courtesy of HYUNDAI MOTOR AMERICA
